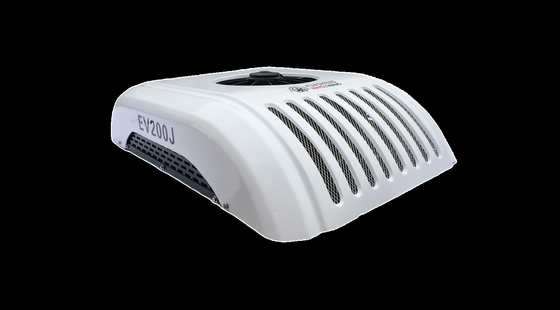

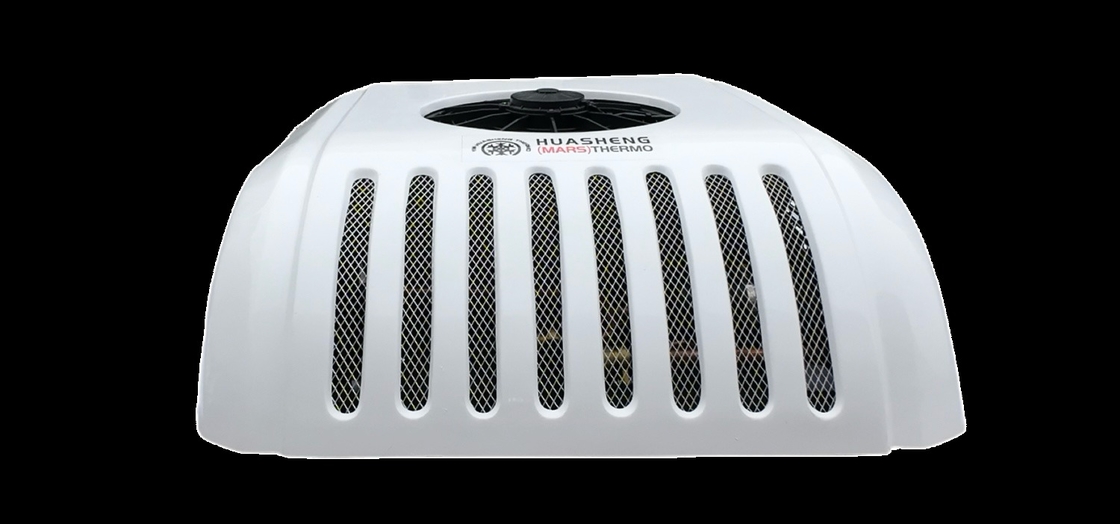

EV-200J Electric Vehicle Refrigeration Unit for 4-8m³ Trucks
Product Details
| Model: | EV-200J | Temperature Range: | -25°C To +25°C |
|---|---|---|---|
| Cooling Capacity(0℃): | 1650W | Cooling Capacity(-18℃): | 960W |
| Application Box Volume: | 4-8 M³ | Outside Temperature: | -25°C To 25 °C |
| Compressor Brand: | Highly | Compressor Mode: | 145 |
| Condenser: | Parallel Flow Condenser | Evaporator: | Inner Grooved Copper Tube&aluminum Fin |
| Highlight |
EV-200J electric truck refrigeration unit,electric refrigeration unit for 4-8m³ trucks,EV-200J refrigeration unit with warranty |
||
Product Description
| Attribute | Value |
|---|---|
| Model | EV-200J |
| Temperature Range | -25°C To +25°C |
| Cooling Capacity(0℃) | 1650W |
| Cooling Capacity(-18℃) | 960W |
| Application Box Volume | 4-8 m³ |
| Outside Temperature | -25°C To 25 °C |
| Compressor Brand | Highly |
| Compressor Mode | 145 |
| Condenser | Parallel Flow Condenser |
| Evaporator | Inner grooved copper tube & aluminum Fin |
Powered by the vehicle battery, our EV-200J unit is specially designed for NEW full electric refrigeration and freezing trucks.
This series was developed to add high performance on top of low energy consumption and zero pollutant emissions. For companies seeking sustainable and environmentally friendly products.
Widely used for reefer truck box size of 4-8m³.
- Applicable for small and medium sized new energy vehicles
- High grade (IP67) water-proof and insulation design, AC-DC interlock and four in one design
- Ultra-slim evaporator or Al-alloy evaporator, with big air flow
- Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed
- The compressor is in built inside the condenser unit, compact design
- Multi-functional and LCD controller, precise temperature control, fully display and easy operation, with fault codes and alarms
- None-interference between charging and unit running, saving charging time and extending the service life of battery
- HP and LP switch safety protection
- Standard AC220V standby for parking cooling
| Parameter | Value |
|---|---|
| Unit Model | EV-200J |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤4-8m³ |
| Cooling Capacity (0℃) | 1650 W |
| Cooling Capacity (-20℃) | 960 W |
| Compressor Model | 145 |
| Compressor Air Displacement | 14.5CC |
| Evaporator Material | Inner grooved copper tube |
| Evaporative Air Volume | 950m³/h |
| Condenser Material | Parallel flow condenser |
| Number of Fans | 1 PCS |
| Compressor Voltage | DC 12/24V |
| Low Voltage Power | DC-DC |
| Control Voltage | DC 12/24V |
| Refrigerant | R404a |
| Refrigerant Charge | 0.95 KG |
| Safety Protection | High and low pressure switch |
| Defrosting | Hot gas defrost automatically |
| Evaporator Weight | 13 KG |
| Condenser Weight | 47 KG |
| Evaporator Dimensions | 780*580*210 |
| Condenser Dimensions | 890*720*207 |
| Drive Model | Full electric driven |
