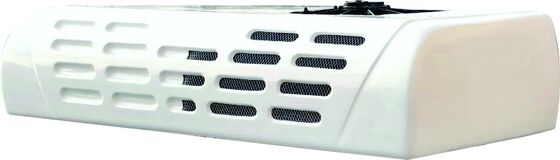

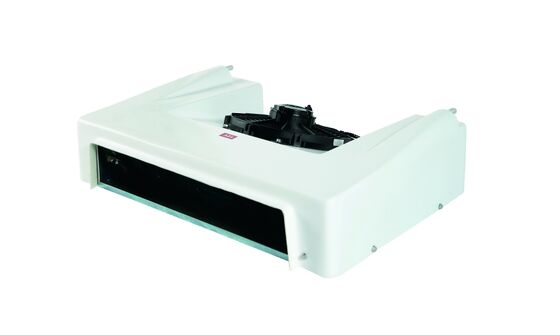

EV300 Vehicle Refrigeration Unit for Electric Trucks with ≤10 m³ Box Volume -25°C To +25°C Range and 2350W Cooling Capacity
Product Details
| Unit Model: | EV300 | Application Box Volume: | ≤10 M³ |
|---|---|---|---|
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 2350W |
| Cooling Capacity(-18℃): | 1250W | Lubricating Oil: | PAG68 |
| Evaporator Material: | Inner Grooved Copper Tube&aluminum Fin | Evaporator Fans: | 1 |
| Condenser Material: | Parallel Flow Condenser | Condenser Fans: | 1 |
| High Voltage: | DC250V-DC450V | Low Voltage Power: | DC-DC |
| Highlight |
≤10 m³ Box Volume Vehicle Refrigeration Unit,-25°C To +25°C Temperature Range EV300 Refrigeration Unit,2350W Cooling Capacity Electric Truck Refrigeration Unit |
||
Product Description
- Applicable for small and medium sized new energy vehicles
- High grade (IP67) water-proof and insulation design, AC-DC interlock and four in one design
- Ultra-slim fiberglass evaporator or Al-alloy evaporator, with big air flow
- Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed
- The compressor is inbuilt inside the condenser unit, compact design
- Multi-functional LCD controller, precise temperature control, full display and easy operation, with fault codes and alarms
- No interference between charging and unit running, saving charging time and extending battery service life
- HP and LP switch safety protection
- Standard AC220V standby for parking cooling
| Unit Model | EV-300 |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤10m³ |
| Cooling Capacity at 0℃ | 2350 W |
| Cooling Capacity at -18℃ | 1250 W |
| Compressor Model | DDH356 |
| Lubricating Oil | PAG 68 |
| Evaporator Material | Inner grooved copper tube |
| Evaporator Fans | 1 PCS |
| Condenser Material | Parallel flow condenser |
| Condenser Fans | 1 PCS |
| High Voltage | DC250V-DC450V |
| Low Voltage Power | DC-DC |
| Control Voltage | DC12V(9-16V) |
| Refrigerant | R404a |
| Refrigerant Charge | 0.8 KG |
| Box Temperature Adjustment | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting | Hot gas defrost automatically |
| Evaporator Weight | 13 KG |
| Condenser Weight | <63 KG |
| Evaporator Dimensions | 780*580*210 |
| Condenser Dimensions | 1280*510*300 |
| Drive Model | Full electric driven |
