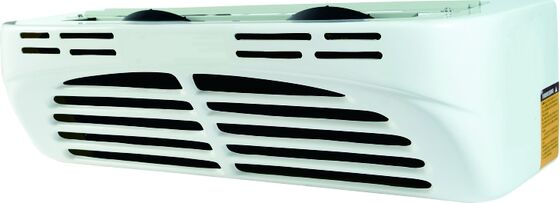

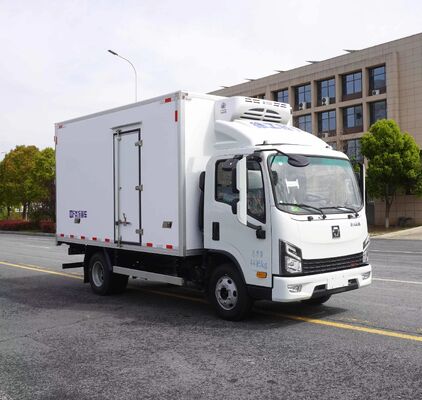

HT-480 Refrigeration Unit with Inner Grooved Copper Tube and Parallel Flow Condenser for Cool Transportation Box Volume ≤18m³
Product Details
| Evaporator: | Inner Grooved Copper Tube | Condenser: | Parallel Flow Condenser |
|---|---|---|---|
| Temperature Range: | -18°C To +20°C | Cooling Capacity(0℃): | 4750W |
| Cooling Capacity(-18℃): | 2130W | Refrigerant Charge: | R404a |
| Highlight |
Inner Grooved Copper Tube Refrigeration Unit,Parallel Flow Condenser Vehicle Refrigeration Unit,Digital Display Control Panel Truck Refrigeration Unit |
||
Product Description
- Eco-friendly refrigerant R404A (R134a system also available)
- Corrosion resistant and high strength FRP canning material
- Aluminium fin parallel flow condenser, lightweight and compact with excellent heat exchange

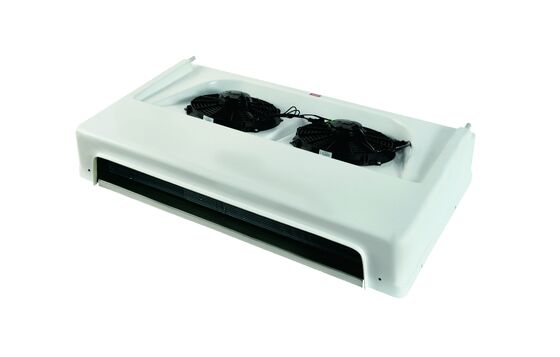

- Inner grooved copper tube evaporator with large airflow and enhanced coil protection
- Strong, reliable compressor specifically designed for R404a systems
- Digital display control panel for minimal operation
- HP and LP switch safety protection
- Large cooling capacity with reliable performance
| Unit Model | HT-480 |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤18m³ |
| Cooling Capacity at 0℃ | 4750 W |
| Cooling Capacity at -18℃ | 2130 W |
| Compressor Model | 5H14 |
| Compressor CC | 135 CC |
| Lubricating Oil | PAG 68 |
| Evaporator Material | Inner grooved copper tube |
| Evaporator Fans | 2 PCS |
| Condenser Material | Parallel flow condenser |
| Condenser Fans | 2 PCS |
| Refrigerant | R404a |
| Refrigerant Charge | 1.4KG |
| Temperature Control | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting System | Hot gas defrost automatically |
| Evaporator Weight | 26 KG |
| Condenser Weight | 35 KG |
| Evaporator Dimensions | 1010×640×250 mm |
| Condenser Dimensions | 1170×520×415 mm |
| Drive Model | Non-independent engine driven |
1. The applicable compartment volume is for reference only, and in actual application, it is related to the compartment volume, insulation performance, environmental temperature, and transported goods.
2. The compressor speed is 2000 rpm, and 12V/24V voltage can be selected according to requirements.
- Technological Leadership: Advanced technology and skilled team enabling design, manufacturing, and innovation to the highest standards.
- Customization Capabilities: Tailored solutions for specific requirements including size, capacity, temperature range, and special needs.
- Quality Assurance: Strict quality control using premium materials and advanced manufacturing processes for reliability and durability.
- Customer Service: Priority on customer needs with excellent support, technical assistance, and timely delivery.
- Energy Efficiency: Advanced energy-saving technologies minimizing consumption while maximizing efficiency and supporting environmental sustainability.
