EV-600 Electric Refrigeration Unit for ≤22m³ Box Volume with 5750W Cooling Capacity and IP67 Waterproof Design

Name: EV-600 Electric Refrigeration Unit for ≤22m³ Box Volume with 5750W Cooling Capacity and IP67 Waterproof Design
Brand: Sichuan Yinhuasheng Technology Co., Ltd.
SKU: EV-600
Availability: InStock

Brand Name:	Yinhuasheng/OEM
Model Number:	EV-600
MOQ:	1SET
Price:	Negotiable
Payment Terms:	TT/LC
Supply Ability:	1000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

EV-600

Evaporator:

Inner Grooved Copper Tube&aluminum Fin

Temperature Range:

-25°C To +25°C

Cooling Capacity(0℃):

5750W

Cooling Capacity(-18℃):

3380W

Application Box Volume:

≤22 M3

Compressor Brand:

Highly

Compressor Displacement:

PAG 68

Packaging Details:

Negotiable

Supply Ability:

1000 sets per month

Highlight:

≤22m³ Box Volume Electric Refrigeration Unit

5750W Cooling Capacity Refrigeration Unit

IP67 Waterproof EV-600

Product Description

EV-600 Electric Refrigeration Unit for Cold Chain Box ≤22m³

Powered by the vehicle battery, our EV-600 unit is specifically engineered for NEV (New Energy Vehicle) full electric trucks. This refrigeration system is designed for reefer truck boxes up to 22m³ capacity. The embedded evaporator design maximizes interior space efficiency by not occupying valuable cargo area.

Standard Features

Compatible with small and medium sized new energy vehicles
High-grade IP67 waterproof and insulation design with AC-DC interlock and four-in-one integration
Ultra-slim fiberglass or aluminum alloy evaporator with high-volume airflow
Fully enclosed electric compressor: high efficiency, eco-friendly operation, unaffected by vehicle speed
Compressor integrated within condenser unit for compact design
Multi-functional LCD controller with precise temperature control, full display, and easy operation featuring fault codes and alarms
Non-interference between charging and unit operation, saving charging time and extending battery service life
High pressure and low pressure switch safety protection
Standard AC220V standby power for parking cooling

Technical Specifications

Parameter	Specification
Unit Model	EV-600
Applicable Temperature	-25℃ to +25℃
Box Volume	≤22m³
Cooling Capacity at 0℃	5750 W
Cooling Capacity at -18℃	3380 W
Compressor Lubricating Oil	PAG 68
Evaporator Material	Inner grooved copper tube
Evaporator Fans	2 PCS
Condenser Material	Parallel flow condenser
Condenser Fans	2 PCS
High Voltage	DC250V-DC450V/DC380V-DC750V
Low Voltage Power	DC-DC
Control Voltage	DC12V(9-16V)/DC24V(16-32V)
Refrigerant	R404a
Refrigerant Charge	1.8 KG
Temperature Control	Electronic digital display
Safety Protection	High and low pressure switch
Defrosting System	Hot gas defrost automatically
Evaporator Weight	24.5 KG
Condenser Weight	<90 KG
Evaporator Dimensions	1130×650×220 mm
Condenser Dimensions	1500×650×530 mm
Drive Model	Full electric driven

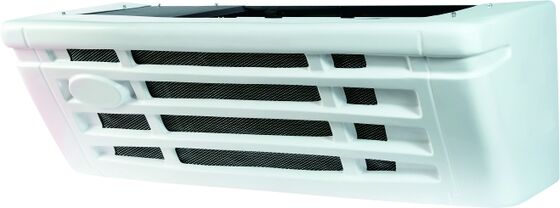

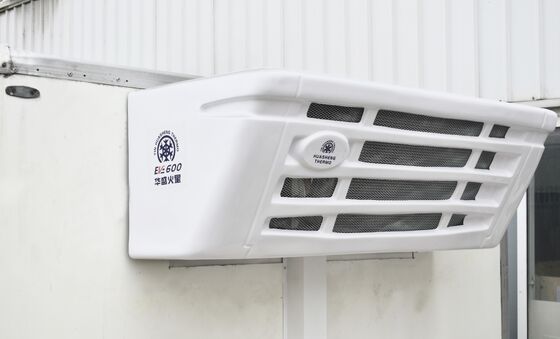

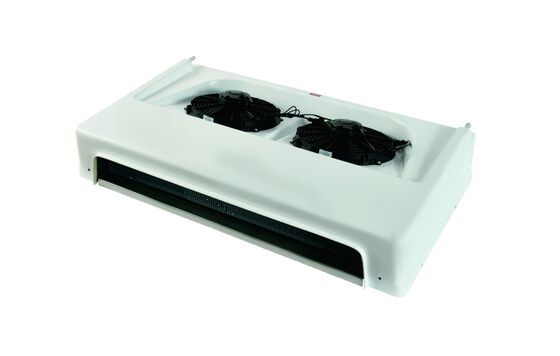

Product Images
