EV-088 Roof Top Refrigeration Unit for Pickup Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant

Name: EV-088 Roof Top Refrigeration Unit for Pickup Trucks with ≤8 m3 Box Volume 2350W Cooling Capacity and R404a Refrigerant
Brand: Sichuan Yinhuasheng Technology Co., Ltd.
SKU: EV-088
Availability: InStock

Brand Name:	Yinhuasheng/OEM
Model Number:	EV-088
MOQ:	1SET
Payment Terms:	TT/LC
Supply Ability:	1000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

EV-088

Temperature Range:

-25°C To +25°C

Application Box Volume:

≤8 M3

Cooling Capacity(0℃):

2350W

Cooling Capacity(-18℃):

1230W

Evaporator:

Inner Grooved Copper Tube&aluminum Fin

Refrigerant Charge:

R404a

Lubricating Oil:

PAG 68

Supply Ability:

1000 sets per month

Highlight:

≤8 m3 box volume Roof Top Refrigeration Unit

2350W cooling capacity Electric Refrigeration Unit

R404a refrigerant Transport Refrigeration Unit

Product Description

EV-088 Roof Top Transport Refrigeration Unit for Pickup Truck

Designed for NEV full electric trucks with box volumes up to 8m³, the EV-088 roof top refrigeration unit is powered by the vehicle battery system. Yinhuasheng units provide the ideal combination of durability, reliability, and low operational costs for transport refrigeration needs.

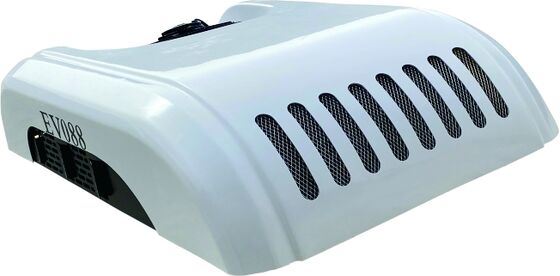

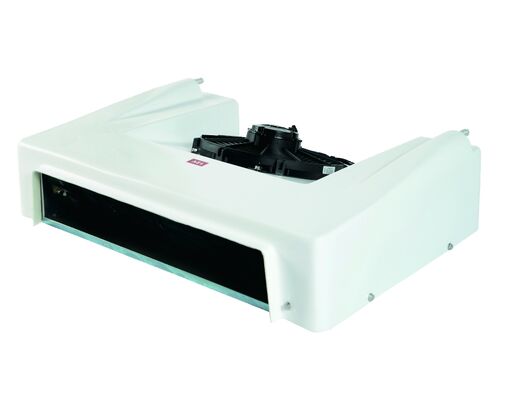

Product Images

Standard Features

Specifically designed for small and medium sized new energy vehicles
High grade IP67 water-proof and insulation design with AC-DC interlock and four-in-one construction
Ultra-slim fiberglass or aluminum alloy evaporator with high airflow capacity
Fully enclosed electric compressor: high efficiency, eco-friendly operation unaffected by vehicle speed
Compact design with compressor integrated inside the condenser unit
Multi-functional LCD controller for precise temperature control with full display and easy operation
Fault codes and alarm systems for enhanced safety
Non-interference between charging and unit operation, saving charging time and extending battery life
High pressure and low pressure switch safety protection
Standard AC220V standby power for parking cooling operations

Technical Specifications

Parameter	Specification
Unit Model	EV-088
Operating Temperature Range	-25℃ to +25℃
Maximum Box Volume	≤8m³
Cooling Capacity at 0℃	2350 W
Cooling Capacity at -18℃	1230 W
Compressor Model	DDH356
Lubricating Oil	PAG 68
Evaporator Material	Inner grooved copper tube
Evaporator Fans	1 PC
Condenser Material	Parallel flow condenser
Condenser Fans	1 PC
High Voltage Range	DC250V-DC450V
Low Voltage Power	DC-DC
Control Voltage	DC12V (9-16V)
Refrigerant Type	R404a
Refrigerant Charge	0.8 KG
Temperature Control	Electronic digital display
Safety Protection	High and low pressure switch
Defrost System	Hot gas defrost automatically
Evaporator Weight	13 KG
Condenser Weight	<62 KG
Evaporator Dimensions	780×580×210 mm
Condenser Dimensions	1140×770×240 mm
Drive Model	Full electric driven
