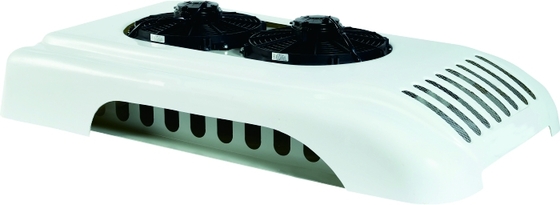

X-38 Van Refrigeration Unit -25°C to +25°C for Cold Chain
Product Details
| Model: | X-38 | Condenser: | Parallel Flow Condenser |
|---|---|---|---|
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 2530W |
| Cooling Capacity(-18℃): | 1530W | Application Box Volume: | ≤8 M3 |
| Outside Temperature: | 30°C To 50 °C | Compressor Brand: | Dayin |
| Compressor Mode: | 5H14 | Compressor Displacement: | 138 CC |
| Evaporator: | Inner Grooved Copper Tube&aluminum Fin | ||
| Highlight |
Van refrigeration unit with wide temperature range,Cold chain van refrigeration system,X-38 van freezer for transport |
||
Product Description
| Attribute | Value |
|---|---|
| Model | X-38 |
| Condenser | Parallel Flow Condenser |
| Temperature Range | -25°C To +25°C |
| Cooling Capacity (0℃) | 2530W |
| Cooling Capacity (-18℃) | 1530W |
| Application Box Volume | ≤8 m³ |
| Outside Temperature | 30°C To 50°C |
| Compressor Brand | Dayin |
| Compressor Mode | 5H14 |
| Compressor Displacement | 138 CC |
| Evaporator | Inner grooved copper tube & aluminum Fin |
- Eco-friendly refrigerant R404A (R134a system is also available)
- Corrosion resistant and high strength FRP canning material
- Aluminium fin parallel flow condenser, light and compact, with good heat exchanging
- Inner grooved copper tube, with strong evaporator, with large airflow and good protection to the evaporator coils
- Strong reliable and stable compressor for R404a systems specially
- Digital display control panel, minimal operation
- HP and LP switch safety protection
- Large cooling capacity, reliable performance
| Parameter | Value |
|---|---|
| Unit Model | X-38 |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤8m³ |
| Cooling Capacity (0℃) | 2530 W |
| Cooling Capacity (-18℃) | 1530 W |
| Compressor Model | 5H14 |
| Compressor Displacement | 138 CC |
| Lubricating Oil | PAG 68 |
| Evaporator Material | Inner grooved copper tube |
| Evaporator Fans | 1 PCS |
| Condenser Material | Parallel flow condenser |
| Condenser Fans | 2 PCS |
| Refrigerant | R404a |
| Refrigerant Charge | 1.0KG |
| Box Temperature Adjustment | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting | Hot gas defrost automatically |
| Evaporator Weight | 13 KG |
| Condenser Weight | 27 KG |
| Evaporator Dimensions | 780*580*210 |
| Condenser Dimensions | 1150*690*250 |
| Drive Model | Non-independent engine driven |
