HT1100 Vehicle Refrigeration Unit with 8425W Cooling Capacity for ≤52 m3 Box Volume and Eco-friendly R404A Refrigerant
Product Details
| Model: | HT-1100 | Condenser: | Parallel Flow Condenser |
|---|---|---|---|
| Evaporator: | Inner Grooved Copper Tube&aluminum Fin | Temperature Range: | -25°C To +25°C |
| Cooling Capacity(0℃): | 8425W | Cooling Capacity(-18℃): | 5365W |
| Application Box Volume: | ≤52 M3 | Outside Temperature: | 30°C To 50 °C |
| Compressor Brand: | Jianshe | Compressor Mode: | JS32 |
| Compressor Displacement: | 328 CC | ||
| Highlight |
Vehicle Cold Chain Transportation Refrigeration Unit,Parallel Flow Condenser Refrigeration Unit,JS32 Compressor Refrigeration Unit |
||
Product Description
- Direct engine drive system for efficient operation
- Low operational and maintenance costs
- Simple installation process
- Optimized for long-distance transportation
- OEM customization available
- Environmentally friendly R404A refrigerant (R134a system optional)
- Corrosion-resistant FRP canning material with high strength
- Aluminum fin parallel flow condenser - lightweight with excellent heat exchange
- Inner grooved copper tube evaporator with large airflow and coil protection
- Specialized R404a compressor for reliability and stability
- User-friendly digital display control panel
- High and low pressure switch safety protection
- High cooling capacity with consistent performance
| Parameter | Specification |
|---|---|
| Unit Model | HT-1100 |
| Operating Temperature Range | -25℃ to +25℃ |
| Recommended Box Volume | ≤52m³ |
| Cooling Capacity (0℃/+30℃) | 8425 W |
| Cooling Capacity (-18℃/+30℃) | 5365 W |
| Compressor Model | QP31/JS32 |
| Compressor Displacement | 313/328 CC |
| Lubricating Oil | PAG 68 |
| Evaporator Material | Inner grooved copper tube |
| Evaporator Fans | 3 PCS |
| Condenser Material | Parallel flow condenser |
| Condenser Fans | 4 PCS |
| Refrigerant | R404a |
| Refrigerant Charge | 4.0KG |
| Temperature Control | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting System | Automatic hot gas defrost |

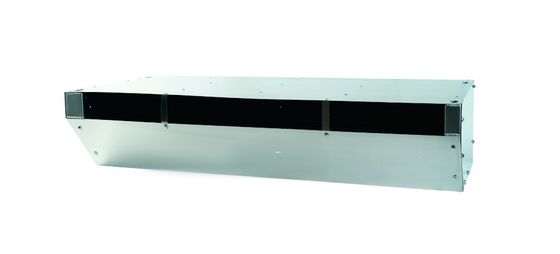

| Evaporator Weight/Dimensions | 41 KG / 1250*680*360 mm |

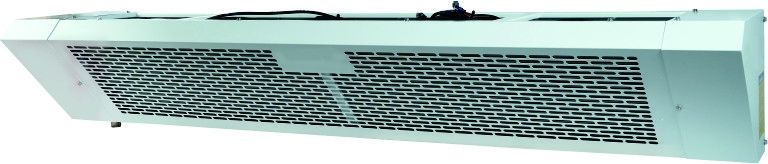

| Condenser Weight/Dimensions | 63 KG / 2130*385*360 mm |
| Drive System | Non-independent engine driven |
Product Highlights
HT1100 Vehicle Refrigeration Unit for Cold Chain Transportation The HT1100 is a reliable engine-driven refrigeration unit designed for 52m³ refrigerated trucks, ideal for transporting chilled and frozen goods including food, pharmaceuticals, produce, and seafood. Key Advantages Direct engine drive ...
