EV-300 Electric Refrigeration Unit with Full Electric Drive for ≤10 m³ Box Volume and Parallel Flow Condenser

Name: EV-300 Electric Refrigeration Unit with Full Electric Drive for ≤10 m³ Box Volume and Parallel Flow Condenser
Brand: Sichuan Yinhuasheng Technology Co., Ltd.
SKU: EV-300
Availability: InStock

Brand Name:	Yinhuasheng/OEM
Model Number:	EV-300
MOQ:	1SET
Payment Terms:	TT/LC
Supply Ability:	1000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

EV-300

Temperature Range:

-25°C To +25°C

Cooling Capacity(0℃):

2350W

Cooling Capacity(-18℃):

1250W

Application Box Volume:

≤10 M3

Outside Temperature:

30°C To 50 °C

Evaporator:

Inner Grooved Copper Tube&aluminum Fin

Condenser Material:

Parallel Flow Condenser

Lubricating Oil:

PAG 68

Supply Ability:

1000 sets per month

Highlight:

PAG 68 Lubricating lorry refrigeration unit

PAG 68 Lubricating truck refrigeration unit

lorry refrigeration unit 1.5KW

Product Description

EV-300 Electric Refrigeration System

Full electric drive refrigeration unit designed for ≤10m³ box volume, specifically engineered for New Energy Vehicle (NEV) electric trucks.

Top-mounted and powered by the vehicle battery, our EV-300 unit is specially designed for NEV full electric trucks. This system is widely used for reefer truck boxes up to 10m³ in volume. Huasheng units are the preferred choice for customers seeking durability and reliability combined with low operational costs and handling efficiency.

Standard Features

Applicable for small and medium sized new energy vehicles
High grade IP67 water-proof and insulation design with AC-DC interlock and four-in-one design
Ultra-slim fiberglass or aluminum alloy evaporator with high air flow capacity
Fully enclosed electric compressor: high efficiency, eco-friendly, and unaffected by vehicle speed
Compressor integrated inside condenser unit for compact design

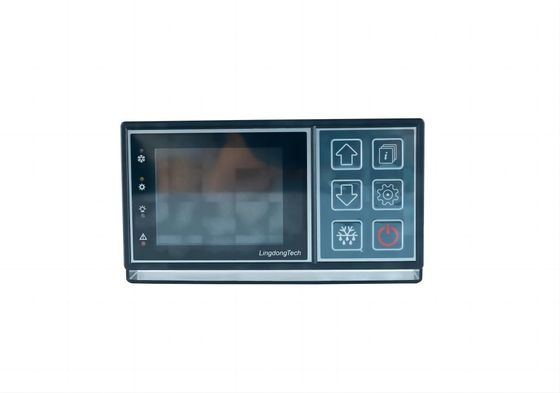

Multi-functional LCD controller with precise temperature control, full display, easy operation, fault codes, and alarms
No interference between charging and unit operation, saving charging time and extending battery service life
High pressure and low pressure switch safety protection
Standard AC220V standby power for parking cooling

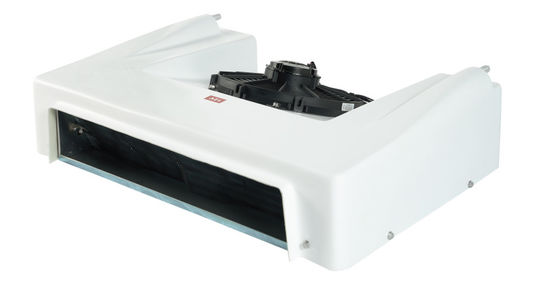

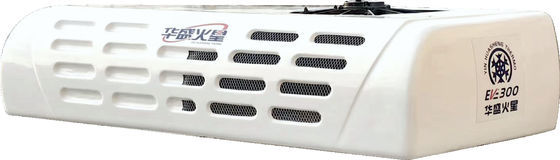

Product Images

Technical Specifications

Parameter	Specification
Unit Model	EV-300
Applicable Temperature	-25℃ ~ +25℃
Box Volume	≤10m³
Cooling Capacity at 0℃	2350 W
Cooling Capacity at -18℃	1250 W
Compressor Model	DDH356
Lubricating Oil	PAG 68
Evaporator Material	Inner grooved copper tube
Evaporator Fans	1 PCS
Condenser Material	Parallel flow condenser
Condenser Fans	1 PCS
High Voltage	DC250V-DC450V
Low Voltage Power	DC-DC
Control Voltage	DC12V(9-16V)
Refrigerant	R404a
Refrigerant Charge	0.8 KG
Box Temperature Adjustment	Electronic digital display
Safety Protection	High and low pressure switch
Defrosting	Hot gas defrost automatically
Evaporator Weight	13 KG
Condenser Weight	<63 KG
Evaporator Dimensions	780580210
Condenser Dimensions	1280510300
Drive Model	Full electric driven

Frequently Asked Questions

How can I select the right products?

Refrigeration unit selection depends on: truck box size, goods to be delivered, temperature requirements, ambient conditions, client performance requirements, and door opening frequency.

What's the minimum order quantity?

1 Set; Sample orders are available.

How is product quality ensured?

- Quality spare parts supply chain
- Contracted technical workers
- Well organized production conforming to ISO9001 and 14001 standards
- Strict product testing before shipping
- Scientifically designed packaging to ensure product protection

How is the warranty period?

18 Months after clients receive goods

How can I ask for compensation if there is a failure?

For products within warranty, users can request warranty service or replacement based on photos or videos documenting the specific failures and problems. Huasheng Thermo will provide technical support and free spare parts.
