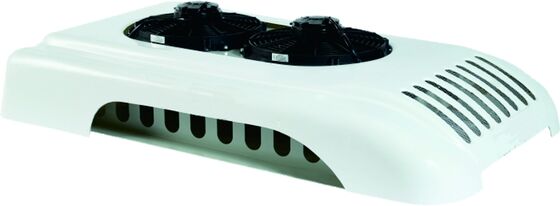

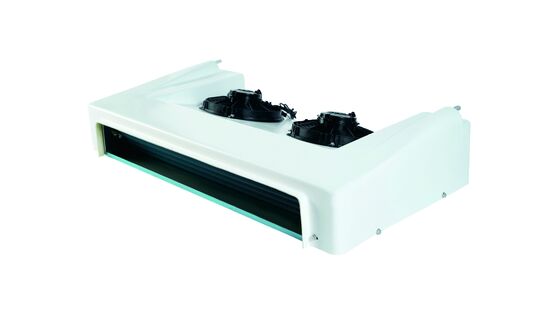

X-58 Direct Drive Vehicle Refrigeration Unit with Parallel Flow Condenser for ≤14m³ Box Volume
Product Details
| Product Name: | Roof-top Refrigeration Unit | Model: | X-58 |
|---|---|---|---|
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 3250W |
| Cooling Capacity(-18℃): | 1830W | Application Box Volume: | ≤14m³ |
| Outside Temperature: | 30°C To 50 °C | Compressor Brand: | Dayin |
| Compressor Mode: | 5H14 | Compressor Displacement: | 138 CC |
| Condenser: | Parallel Flow Condenser | Evaporator: | Inner Grooved Copper Tube&aluminum Fin |
| Highlight |
Direct Drive Vehicle Refrigeration Unit,Parallel Flow Condenser Vehicle Refrigeration Unit,≤14m³ Van Refrigeration Unit |
||
Product Description
- Top-mounted installation on refrigeration vans and trucks
- Direct drive by vehicle engine, designed for 14m³ refrigerated trucks to transport chilled & frozen foods, medical supplies, fruits, vegetables, ice cubes, seafood, and more
- OEM customization services available
- Low operational and maintenance costs
- Easy installation process
- Suitable for long-distance transportation
- Eco-friendly refrigerant R404A (R134a system also available)
- Corrosion-resistant and high-strength FRP canning material
- Aluminum fin parallel flow condenser - lightweight, compact design with excellent heat exchange
- Inner grooved copper tube evaporator with strong construction, large airflow, and superior coil protection
- Robust, reliable compressor specifically designed for R404a systems
- Digital display control panel for minimal operation
- High and low pressure switch safety protection
- Large cooling capacity with reliable performance
| Unit Model | X-58 |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤14m³ |
| Cooling Capacity at 0℃ | 3250 W |
| Cooling Capacity at -18℃ | 1830 W |
| Compressor Model | 5H14 |
| Compressor Displacement | 138 CC |
| Lubricating Oil | PAG 68 |
| Evaporator Material | Inner grooved copper tube |
| Evaporator Fans | 2 PCS |
| Condenser Material | Parallel flow condenser |
| Condenser Fans | 2 PCS |
| Refrigerant | R404a |
| Refrigerant Charge | 1.2 KG |
| Temperature Control | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting System | Hot gas defrost automatically |
| Evaporator Weight | 15 KG |
| Condenser Weight | 27 KG |
| Evaporator Dimensions | 910×570×210 mm |
| Condenser Dimensions | 1150×690×250 mm |
| Drive Model | Non-independent engine driven |
