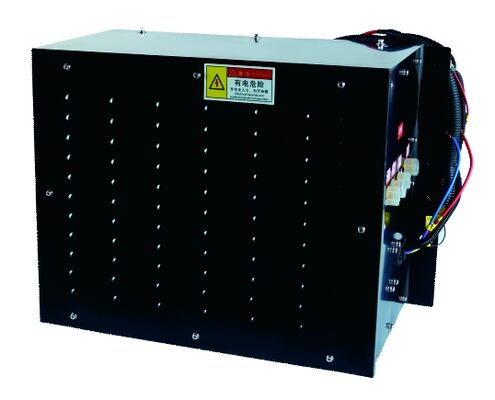

Electric Backup Power System for Transport Refrigeration with 2.2 KW Power Rating 110V-420V AC Drive Model and R404a Refrigerant
Product Details
| Model: | ZB-21 | Temperature Range: | -25°C To +25°C |
|---|---|---|---|
| Application Box Volume: | 8-35 M3 | Compressor Brand: | ZB-21 |
| Compressor Mode: | POE32 | Compressor Watt: | 2.2 KW |
| Low Voltage Power: | AC-DC | Control Voltage: | DC12V(9-16V)/DC24V(16-32V) |
| Refrigerant: | R404a | Outside Temperature: | 30°C To 50 °C |
| Drive Model: | 110V-420V AC 50-60HZ | ||
| Highlight |
electric transport refrigeration backup power,parking cooling backup power system,transport refrigeration backup power system |
||
Product Description
- Parking cooling backup system for uninterrupted refrigeration
- Compatible with 110V-420V backup power systems
- No engine drive cooling required after parking
- Low operation cost and energy efficient
- High-reliability Emerson compressor for dependable performance
| Parameter | Specification |
|---|---|
| Unit Model | ZB-21 |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | 8m³-35m³ |
| Compressor Model | ZB21 |
| Lubricating Oil | POE32 |
| Power Rating | 2.2 KW |
| Low Voltage Power | AC-DC |
| Control Voltage | DC12V(9-16V)/DC24V(16-32V) |
| Refrigerant | R404a |
| Weight/Dimensions | <60KG 605*300*420 mm |
| Drive Model | 110V-420V AC 50-60HZ |
- Quality spare parts supply chain
- Contracted technical workers
- Well organized production conforming to ISO9001 and 14001 standards
- Strict product testing before shipping
- Scientifically designed packaging for protection
Product Highlights
Electric Backup Power System for Refrigeration Unit (110V-380V) The electric backup power system provides continuous cooling when the truck is parked and the road compressor stops working. The unit operates on AC110V/AC380V city electricity, ensuring reliable temperature control during stationary ...
