HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for Cold Chain Transport

HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for Cold Chain Transport

HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for Cold Chain Transport

Brand Name: Yinhuasheng/OEM
Model Number: HT-500
MOQ: 1SET
Payment Terms: TT/LC
Supply Ability: 1000 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE/ISO9001
Model:
HT-500
Temperature Range:
-25°C To +25°C
Application Box Volume:
≤18 M3
Cooling Capacity(0℃):
5100W
Cooling Capacity(-18℃):
2350W
Compressor Brand:
Guangyu
Compressor Mode:
GY16
Compressor Displacement:
163 CC
Evaporator:
Inner Grooved Copper Tube&aluminum Fin
Condenser:
Parallel Flow Condenser
Outside Temperature:
30°C To 50 °C
Supply Ability:
1000 sets per month
Highlight:

HT-500 Model Vehicle Refrigeration Unit

,

Parallel Flow Condenser Truck Refrigeration Unit

,

Inner Grooved Copper Tube Van Refrigeration Unit

Product Description
HT-500 Vehicle Refrigeration Unit For Cold Chain Transport
Product Overview

Professional refrigeration unit designed for trucks, lorries, and vans with cargo volumes up to 18m³. Ideal for cold chain transport applications requiring reliable temperature control.

Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser - lightweight and compact with excellent heat exchange
  • Inner grooved copper tube evaporator with large airflow and enhanced coil protection
  • Strong, reliable compressor specifically designed for R404a systems
  • Digital display control panel for minimal operation
  • High and low pressure switch safety protection
  • Large cooling capacity with reliable performance

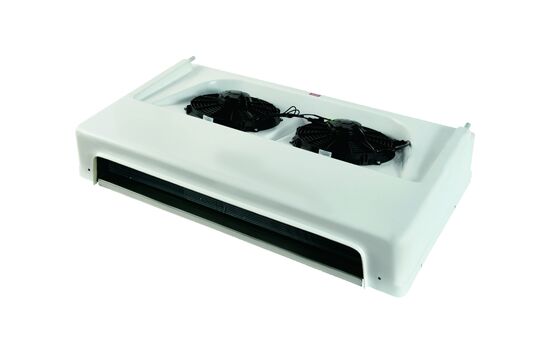

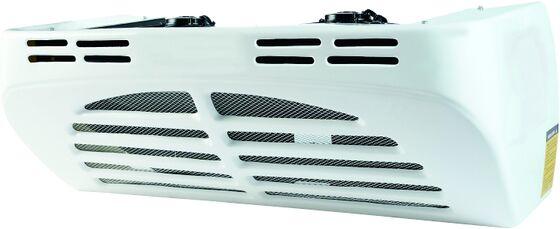

Product Images
HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for Cold Chain Transport 0 HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for Cold Chain Transport 1 HT-500 Model Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube for Cold Chain Transport 2
Technical Specifications
Unit Model HT-500
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤18m³
Cooling Capacity 5100 W at 0℃
2350 W at -18℃
Compressor Model: GY16
Displacement: 163 CC
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 2 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 2 PCS
Refrigerant R404a
Refrigerant Charge 1.4KG
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight & Dimensions Evaporator: 26 KG (1010×640×250 mm)
Condenser: 35 KG (1170×520×415 mm)
Drive Model Non-independent engine driven
Important Notes
  • The applicable compartment volume is for reference only. Actual performance depends on compartment volume, insulation quality, environmental temperature, and transported goods.
  • Compressor operates at 2000 rpm with selectable 12V/24V voltage options.
