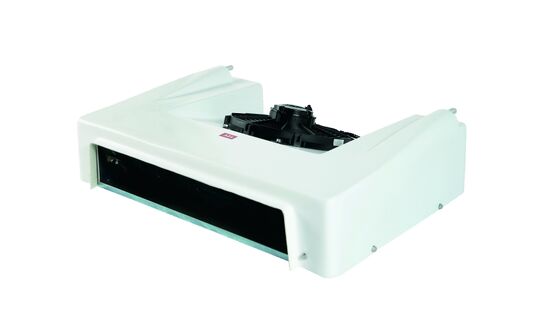

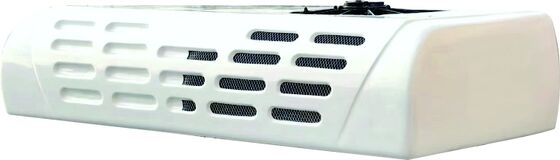

EV300 Full Electric Drive Vehicle Refrigeration Unit with Parallel Flow Condenser and Inner Grooved Copper Tube
Product Details
| Unit Model: | EV-300 | Application Box Volume: | ≤10 M³ |
|---|---|---|---|
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 2350W |
| Cooling Capacity(-18℃): | 1250W | Lubricating Oil: | PAG68 |
| Evaporator Material: | Inner Grooved Copper Tube&aluminum Fin | Evaporator Fans: | 1 |
| Condenser Material: | Parallel Flow Condenser | Condenser Fans: | 1 |
| Highlight |
Full Electric Drive Vehicle Refrigeration Unit,Parallel Flow Condenser Truck Refrigeration Unit,Inner Grooved Copper Tube EV300 Refrigeration Unit |
||
Product Description
Powered by the vehicle battery, our EV-300 unit is specially engineered for NEV (New Energy Vehicle) full electric trucks. This refrigeration system is ideal for reefer truck boxes up to 10m³ in volume.
- Designed for small and medium sized new energy vehicles
- High grade IP67 water-proof and insulation design with AC-DC interlock and four-in-one configuration
- Ultra-slim fiberglass or aluminum alloy evaporator with high airflow capacity
- Fully enclosed electric compressor: high efficiency, eco-friendly operation, unaffected by vehicle speed
- Compact design with compressor integrated inside the condenser unit
- Multi-functional LCD controller with precise temperature control, full display, and easy operation including fault codes and alarms
- No interference between charging and unit operation, saving charging time and extending battery service life
- High pressure and low pressure switch safety protection
- Standard AC220V standby power for parking cooling
| Parameter | Specification |
|---|---|
| Unit Model | EV-300 |
| Applicable Temperature Range | -25℃ to +25℃ |
| Box Volume Capacity | ≤ 10m³ |
| Cooling Capacity |
0℃: 2350 W
-18℃: 1250 W
|
| Compressor | Model: DDH356 |
| Lubricating Oil | PAG 68 |
| Evaporator |
Material: Inner grooved copper tube
Number of Fans: 1 PCS
|
| Condenser |
Material: Parallel flow condenser
Number of Fans: 1 PCS
|
| High Voltage | DC250V - DC450V |
| Low Voltage Power | DC-DC |
| Control Voltage | DC12V (9-16V) |
| Refrigerant | R404a |
| Refrigerant Charge | 0.8 KG |
| Temperature Control | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting System | Hot gas defrost automatically |
| Weight & Dimensions |
Evaporator: 13 KG (780*580*210 mm)
Condenser: <63 KG (1280*510*300 mm)
|
| Drive Model | Full electric driven |
