Electric Refrigeration Unit
Created with Pixso.

EV-388 Full Electric Drive Vehicle Refrigeration System with -25°C To +25°C Range and 3010W Cooling Capacity

EV-388 Full Electric Drive Vehicle Refrigeration System with -25°C To +25°C Range and 3010W Cooling Capacity

EV-388 Full Electric Drive Vehicle Refrigeration System with -25°C To +25°C Range and 3010W Cooling Capacity

Brand Name: Yinhuasheng/OEM
Model Number: EV-388
MOQ: 1SET
Payment Terms: TT/LC
Supply Ability: 1000 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
EV-388
Temperature Range:
-25°C To +25°C
Cooling Capacity(0℃):
3010W
Cooling Capacity(-18℃):
1710W
Application Box Volume:
≤12 M³
Outside Temperature:
30°C To 50 °C
Compressor Brand:
Highly
Compressor Mode:
PAG 68
Condenser:
Parallel Flow Condenser
Evaporator:
Inner Grooved Copper Tube&aluminum Fin
Supply Ability:
1000 sets per month
Highlight:

Full Electric Drive Vehicle Refrigeration System

,

Temperature Range -25°C To +25°C Electric Refrigeration Unit

,

Cooling Capacity 3010W EV-388 Refrigeration Unit

Product Description
EV-388 Vehicle Refrigeration System For Full Electric Drive
Powered by the vehicle battery, our EV-388 unit is specially designed for NEV full electric trucks. This system is widely used for reefer truck boxes up to 12m³ in size. Yinhuasheng units are the preferred choice for customers seeking durability and reliability combined with low operational costs and efficient handling.
Standard Features
  • Applicable for small and medium sized new energy vehicles
  • High grade (IP67) water-proof and insulation design with AC-DC interlock and four-in-one design
  • Ultra-slim fiberglass or aluminum alloy evaporator with high airflow capacity
  • Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed
  • Compressor integrated inside condenser unit for compact design
  • Multi-functional LCD controller with precise temperature control, full display, and easy operation
  • Fault codes and alarm systems for enhanced safety
  • No interference between charging and unit operation, saving charging time and extending battery life
  • High pressure and low pressure switch safety protection
  • Standard AC220V standby for parking cooling
Product Images

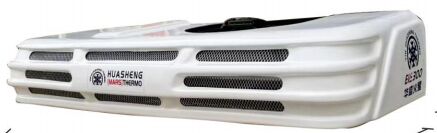

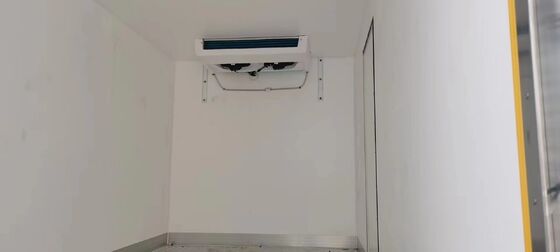

EV-388 Full Electric Drive Vehicle Refrigeration System with -25°C To +25°C Range and 3010W Cooling Capacity 0 EV-388 Full Electric Drive Vehicle Refrigeration System with -25°C To +25°C Range and 3010W Cooling Capacity 1
Technical Parameters
Parameter Specification
Unit Model EV-388
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤12m³
Cooling Capacity at 0℃ 3010 W
Cooling Capacity at -18℃ 1710 W
Compressor Model DTH356
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 2 PCS
Condenser Material Parallel flow condenser
Condenser Fans 2 PCS
High Voltage DC250V-DC450V/DC380V-DC750V
Low Voltage Power DC-DC
Control Voltage DC12V(9-16V)/DC24V(16-32V)
Refrigerant R404a
Refrigerant Charge 1.3 KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Evaporator Weight 17 KG
Condenser Weight <58 KG
Evaporator Dimensions (mm) 1000×580×210
Condenser Dimensions (mm) 1150×850×280
Drive Model Full electric driven
