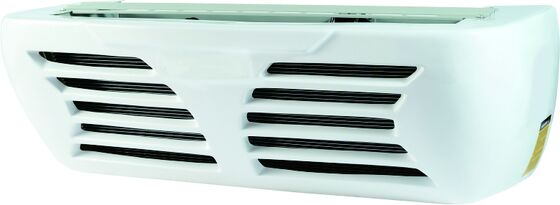

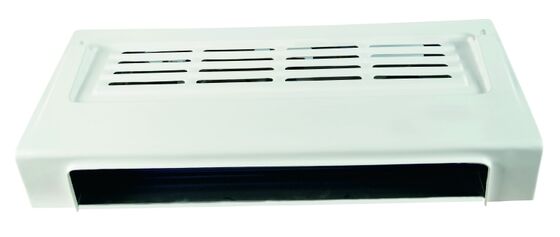

HT-580 Truck Refrigeration Unit with 22m³ Capacity R404A Refrigerant and GY17 Compressor for Frozen Van
Product Details
| Model: | HT-580 | Cooling Capacity(0℃): | 5450W |
|---|---|---|---|
| Cooling Capacity(-18℃): | 2750W | Application Box Volume: | ≤22 M³ |
| Outside Temperature: | 30°C To 50 °C | Compressor Brand: | Guangyu |
| Compressor Mode: | GY17 | Compressor Displacement: | 177 CC |
| Evaporator: | Inner Grooved Copper Tube&aluminum Fin | Condenser: | Parallel Flow Condenser |
| Highlight |
22m³ Truck Refrigeration Unit,R404A Refrigerant Van Refrigeration Unit,GY17 Compressor Refrigerated Truck Unit |
||
Product Description

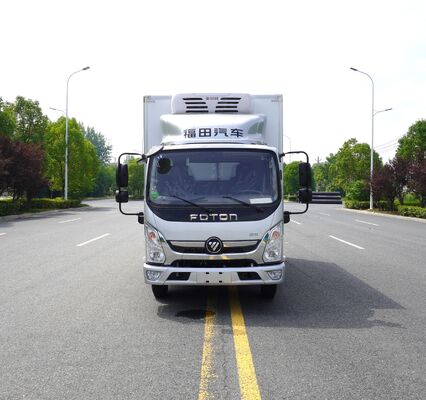

The HT-580 is a direct engine-driven refrigeration unit specifically designed for 22m³ refrigerated trucks, providing reliable temperature control for chilled and frozen goods transportation.
- Direct engine drive system for optimal efficiency
- Specifically engineered for 22m³ refrigerated trucks
- Ideal for transporting chilled & frozen foods, medical supplies, fruits, vegetables, ice cubes, and seafood
- OEM customization services available
- Low operational and maintenance costs
- Easy installation process
- Suitable for long-distance transportation
- Eco-friendly refrigerant R404A (R134a system also available)
- Corrosion-resistant, high-strength FRP canning material
- Aluminum fin parallel flow condenser - lightweight, compact design with excellent heat exchange
- Inner grooved copper tube evaporator with strong construction, large airflow, and enhanced coil protection
- Robust, reliable compressor specifically designed for R404a systems
- Digital display control panel for minimal operation complexity
- HP and LP switch safety protection systems
- Large cooling capacity with dependable performance
| Parameter | Specification |
|---|---|
| Unit Model | HT-580 |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤22m³ |
| Cooling Capacity (0℃/+30℃) | 5450 W |
| Cooling Capacity (-18℃/+30℃) | 2750 W |
| Compressor Model | GY17 |
| Compressor Displacement | 177 CC |
| Lubricating Oil | PAG 68 |
| Evaporator Material | Inner grooved copper tube |
| Evaporator Fans | 3 PCS |
| Condenser Material | Parallel flow condenser |
| Condenser Fans | 2 PCS |
| Refrigerant | R404a |
| Refrigerant Charge | 2.2 KG |
| Temperature Control | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting System | Hot gas defrost automatically |
| Evaporator Weight | 30 KG |
| Condenser Weight | 45 KG |
| Evaporator Dimensions | 1400×660×250 mm |
| Condenser Dimensions | 1345×520×430 mm |
| Drive Model | Non-independent engine driven |
Product Highlights
HT-580 Frozen Van Truck Refrigeration Units 22m³ Product Overview The HT-580 is a direct engine-driven refrigeration unit specifically designed for 22m³ refrigerated trucks, providing reliable temperature control for chilled and frozen goods transportation. Key Advantages Direct engine drive system ...
