EV-500 Electric Refrigeration Unit for Trucks with 5100W Cooling Capacity and ≤19m³ Box Volume Using PAG 68 Lubricating Oil
Product Details
| Model: | EV-500 | Temperature Range: | -25°C To +25°C |
|---|---|---|---|
| Application Box Volume: | ≤19 M³ | Outside Temperature: | 30°C To 50 °C |
| Cooling Capacity(0℃): | 5100W | Cooling Capacity(-18℃): | 2790W |
| Evaporator: | Inner Grooved Copper Tube&aluminum Fin | Condenser Material: | Parallel Flow Condenser |
| Libricating Oil: | PAG 68 | ||
| Highlight |
5100W Cooling Capacity Electric Refrigeration Unit,≤19m³ Box Volume Truck Refrigeration Unit,PAG 68 Lubricating Oil EV-500 Refrigeration Unit |
||
Product Description
Top mounted,powered by the vehicle battery, our EV-500 unit is specially designed for NEV full electric trucks.
Which is widely be used for frozen truck box size of 10m³.
Yinhuasheng units will be customer's preferential choice who wants to put together durability and reliability, with low operational cost and handling charges.
Standard Features:
1.Applicable for small and medium sized new energy vehicles.
2. High grade(IP67) water-proof and insulation design, AC-DC interlock and four in one design.
3. Ultra-slim fiberglass evaporator or Al-alloy evaporator, with big air flow.
4. Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed.
5. The compressor is inbuilt inside the condenser unit, compact design.
6. Multi-functional and LCD controller, precise temperature control, fully display and easy operation, with fault codes and alarms.
7. None-interference between charging and unit running, saving charging time and extending the service life of battery.
8. HP and LP switch safety protection.
9. Standard AC220V standby for parking cooling.

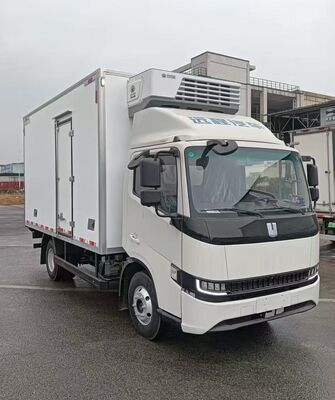

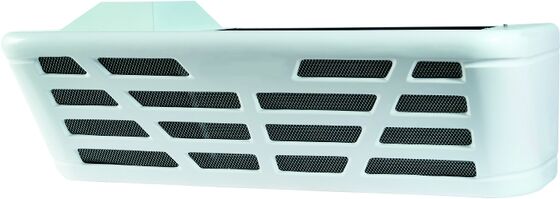

Product Pictures:
Technical Parameters:
| Unit Model | EV-500 | |
| Applicable Temperature(℃) | -25℃ ~ +25℃ | |
| Box Volume (m³) | ≤19m³ | |
|
Cooling Capacity (W) |
0℃ | 5100 W |
| -18℃ | 2790 W | |
| Compressor | Model | DTH356 |
| Lubricating Oil | PAG 68 | |
| Evaporator | Material | Inner grooved copper tube |
| Number of Fans | 2 PCS | |
|
Condenser |
Material | Parallel flow condenser |
| Number of Fans | 2 PCS | |
| High Voltage | DC250V-DC450V/DC380V-DC750V | |
| Low Voltage Power | DC-DC | |
| Control Voltage | DC12V(9-16V)/DC24V(16-32V) | |
| Refrigerant | R404a | |
| Refrigerant Charge | 1.4 KG | |
| Box Temperature Adjustment | Electronic digital display | |
| Safety Protect | High and low pressure switch | |
| Defrosting | Hot gas defrost automatically | |
| Weight/Dimensions | Evaporator | 21 KG |
| Condenser | ＜80 KG | |
| Evaporator | 1010*650*220 | |
| Condenser | 1350*580*420 | |
| Drive Model | Full electric driven | |
Product Highlights
Top mounted,powered by the vehicle battery, our EV-500 unit is specially designed for NEV full electric trucks. Which is widely be used for frozen truck box size of 10m³. Yinhuasheng units will be customer's preferential choice who wants to put together durability and reliability, with low ...
