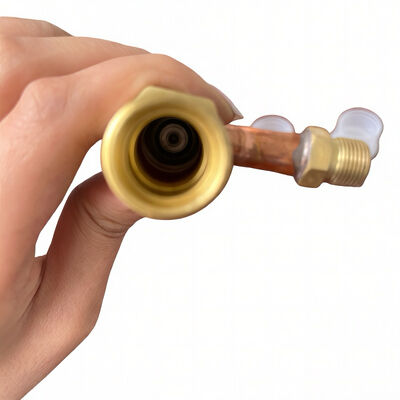

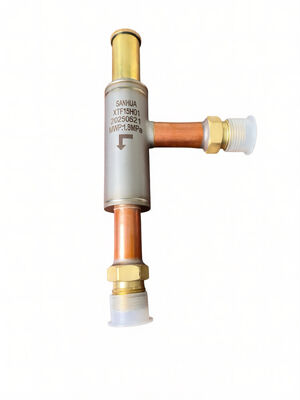

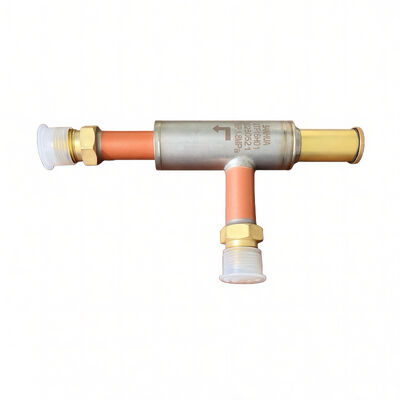

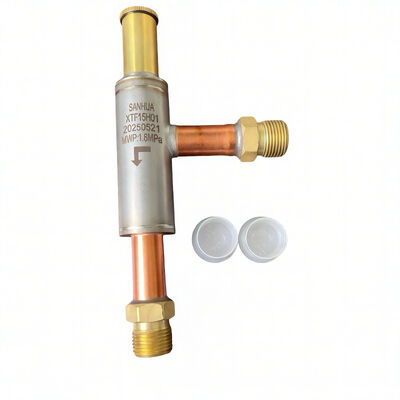

Sanhua XTF 15H01 Suction Pressure Regulating Valve with 1.8 MPa Max Working Pressure and 5/8" ODF Connection in Stainless Steel

Brand Name:	YINHUASHENG
Model Number:	XTF15H01
MOQ:	1PCS
Price:	negotiation
Payment Terms:	L/C,T/T
Supply Ability:	1000

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE/ISO

Model Number:

XTF 15H01

KV Value (Flow Capacity):

3.2 M³/h

Max Working Pressure (MWP):

1.8 MPa

Connection Size:

5/8" ODF (16mm)

Factory Setting Pressure:

0.25 MPa

Pressure Adjust Range:

0 ~ 0.6 MPa

KV Value:

3.2 M³/h

Packaging Details:

WOODEN CAGE/CARTOON

Supply Ability:

1000

Highlight:

Sanhua XTF suction pressure valve

stainless steel regulating valve

5/8 ODF refrigerator valve

Product Description

Sanhua XTF 15H01 Suction Pressure Regulating Valve

Product Overview

Sanhua XTF 15H01 Suction Pressure Regulator is a high-performance refrigeration control valve designed for installation in the compressor suction line. It precisely regulates suction pressure to prevent overpressure, protecting compressors and ensuring stable system operation in HVAC, refrigeration, and cold chain applications.

Key Features

Precise Pressure Regulation: Delivers accurate and variable suction pressure control for optimal system performance
Superior Durability: Stainless steel valve body and bellows for excellent corrosion resistance
Long Service Life: Rated for 250,000 cycles for reliable long-term operation
Wide Compatibility: Works with all common HCFC & HFC refrigerants (R22, R134a, R407C, R410A, R32)
Stable Performance: Operates efficiently under extreme temperatures:
- Medium Temp: -40°C ~ 130°C
- Ambient Temp: -40°C ~ 60°C

Technical Specifications

Parameter	Specification
Model Number	XTF 15H01
Type	Suction Pressure Regulating Valve
KV Value (Flow Capacity)	3.2 m³/h
Max Working Pressure (MWP)	1.8 MPa
Connection Size	5/8" ODF (16mm)
Factory Setting Pressure	0.25 MPa
Pressure Adjust Range	0 ~ 0.6 MPa
Body Material	Stainless Steel
Bellows Material	Stainless Steel
Dimensions (ABC)	179 * 64 * 99 mm

Applications

Commercial Refrigeration Units
Cold Storage & Freezer Rooms
Transport Refrigeration (Truck/Trailer)
Air Conditioning Systems
Heat Pumps
Industrial Refrigeration Systems

Why Choose Sanhua XTF Series?

Original Genuine Part: Direct from Sanhua, a world-leading HVAC/R component manufacturer
Perfect Fit: Exact OEM replacement for original equipment
Quality Assured: Strict quality control and testing for leak-proof performance
Easy Installation: Standard ODF connection for simple brazing installation
