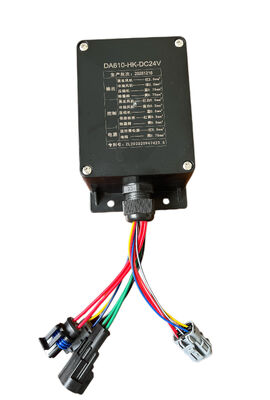

DA610-HK-DC24V /12V 24V /12V DC Refrigeration Controller with High-Power System, Full-Function Control, and Rugged Design
Product Details
| Model: | DA610-HK-DC24V | Rated Voltage: | DC 24V |
|---|---|---|---|
| Application: | Refrigerated Truck Refrigeration System, Cold Chain Transport Equipment | ||
| Highlight |
24V DC refrigeration controller,high-power refrigeration system controller,rugged refrigerator control unit |
||
Product Description
The DA610-HK-DC24/12V is a professional-grade 24V/12V DC refrigeration system controller engineered for heavy-duty refrigerated trucks, cold chain transport vehicles, and mobile cooling equipment. As a core control component, it integrates full-range power output and signal control functions to ensure stable, efficient operation of refrigeration systems. Equipped with batch traceability and patented technology, this control box delivers industry-leading reliability and compatibility for 24V/12V DC refrigeration applications.
-
24V DC High-Power System Compatibility
- Optimized for 24/12V DC power supply, ideal for large refrigerated trucks, cold chain transport units, and industrial mobile cooling systems
- Supports high-current loads (2.0mm² for fans, 0.75mm² for compressor/valve) to meet the power demands of heavy-duty refrigeration systems
- Aligned with industry-standard 24/12V refrigeration equipment specifications for seamless OEM and aftermarket integration
-
Full-Function System Control

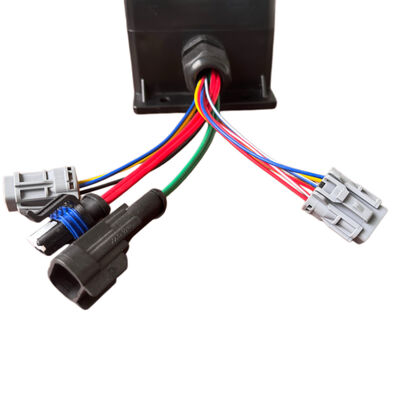

- Power Circuit Output: Independent 2.0mm² red/green lines for evaporator/condenser fans; 0.75mm² blue/yellow lines for compressor/defrost valve
- Signal Circuit Control: Precise 0.5mm² control signals for fan operation, compressor start/stop, and defrost valve actuation
- Safety Monitoring: Red-Yellow 0.5mm² fuse detection signal for real-time safety status monitoring, preventing overload damage to critical components
-
Simplified Installation & Maintenance

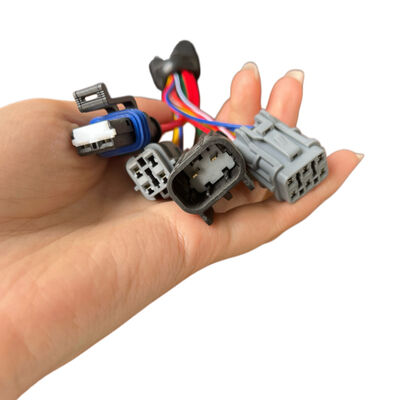

- Color-Coded Wiring: Clear labeling of power, control, and ground terminals reduces wiring errors and speeds up installation
- Dedicated Power Terminals: Separate red 0.5mm² for thermostat power and black 0.75mm² ground wire ensure stable signal transmission and anti-interference performance
- Batch & Patent Certified: Batch No. 20251216 for quality traceability; patented design for superior durability compared to generic controllers
-
Rugged & Reliable Design
- Built to withstand harsh mobile refrigeration environments (vibration, moisture, dust)
- Comprehensive protection for all load circuits, extending the service life of compressors, fans, and valves
- Suitable for continuous operation in cold chain logistics, refrigerated transport, and mobile cooling systems
| Item | Details |
|---|---|
| Model | DA610-HK-DC24/12V |
| Rated Voltage | DC 24/12V |
| Application | Refrigerated truck refrigeration system, cold chain transport equipment |
| Load Name | Wire Color | Wire Gauge | Function Description |
|---|---|---|---|
| Evaporator Fan | Red | 2.0mm² | Main power output for evaporator blower |
| Condenser Fan | Green | 2.0mm² | Main power output for condenser cooling fan |
| Compressor | Blue | 0.75mm² | Main power output for refrigeration compressor |
| Defrost Valve | Yellow | 0.75mm² | Main power output for defrost solenoid valve |
| Load Name | Wire Color | Wire Gauge | Function Description |
|---|---|---|---|
| Evaporator Fan Control | Red-White | 0.5mm² | Operation control signal for evaporator fan |
| Condenser Fan Control | Blue-White | 0.5mm² | Operation control signal for condenser fan |
| Compressor Control | Blue | 0.5mm² | Start / stop control signal for compressor |
| Fuse Detection | Red-Yellow | 0.5mm² | Safety fuse status monitoring signal |
| Defrost Valve Control | Yellow | 0.5mm² | Opening / closing control signal for defrost valve |
| Load Name | Wire Color | Wire Gauge | Function Description |
|---|---|---|---|
| Thermostat Power | Red | 0.5mm² | Power input for temperature controller |
| Ground Wire | Black | 0.75mm² | System ground connection for safety and anti-interference |
Product Highlights
DA610-HK-DC24V: Professional 24V DC refrigeration controller for refrigerated trucks & cold chain transport. Features high-power compatibility, full system control, safety monitoring, and patented durable design. Batch traceable for quality assurance.
