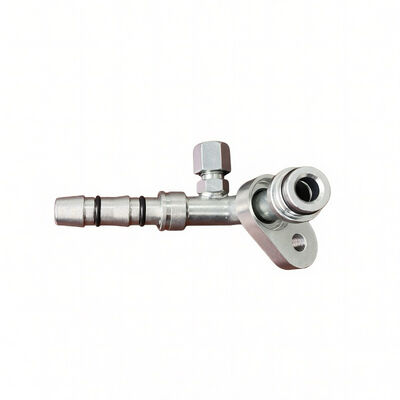

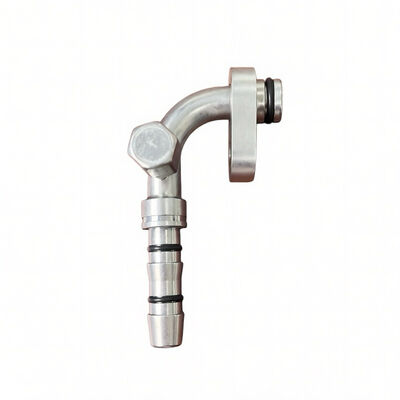

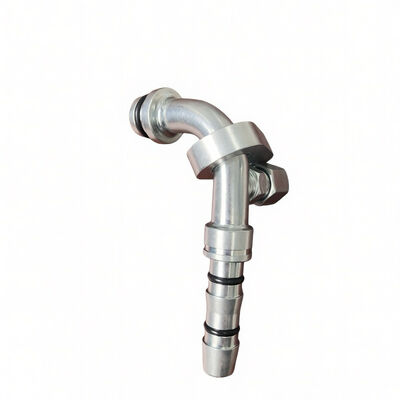

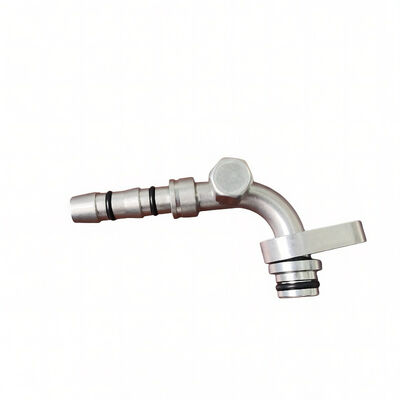

JM Eco-Friendly Flange 4-Point 90° Elbow Tube Fitting with Side Service Valve | Refrigeration Hose Connector
Product Details
| Model: | JM Eco-Friendly Flange 4-Point 90° Elbow (Side Valve) | Size: | 4-Point (DN10 / 1/2" Equivalent) |
|---|---|---|---|
| Connection Type: | OR Hose End + JM Eco-Friendly Flange | Angle: | 90° Elbow |
| Compatible Fluids: | R404a | Application: | Refrigerated Trucks, Container Units, Commercial Refrigeration |
| Highlight |
Eco-friendly flange elbow tube fitting,Refrigeration hose connector with valve,4-point elbow fitting for refrigeration |
||
Product Description
- JM Eco-Friendly Flange Design: Meets global environmental standards for safe refrigerant system operation
- 4-Point Size & 90° Elbow Structure: Optimized for routing hoses in narrow spaces, reducing installation complexity
- Side-Mounted Service Valve: Convenient access for refrigerant charging, pressure testing, and maintenance
- Integrated Mounting Bracket: Eliminates need for additional brackets, ensuring secure fixation against vibration
- High-Strength Metal Construction: Resists corrosion, high pressure, and wear in harsh conditions
- Dual O-Ring Sealing: Prevents refrigerant leakage under extreme temperature and pressure fluctuations
- Precision Machining: Smooth internal bore minimizes flow resistance and pressure loss
| Parameter | Details |
|---|---|
| Model | JM Eco-Friendly Flange 4-Point 90° Elbow (Side Valve) |
| Size | 4-Point (DN10 / 1/2" equivalent) |
| Connection Type | OR Hose End + JM Eco-Friendly Flange |
| Valve Position | Side-mounted for convenient access |
| Angle | 90° Elbow |
| Material | High-Grade Steel (Zinc-plated) |
| Sealing | Dual O-Ring (EPDM/NBR) + Flange Gasket |
| Compatible Fluids | R404a |
| Application | Refrigerated Trucks, Container Units, Commercial Refrigeration |
- Transport Refrigeration: Connects hoses to compressors and oil separators in refrigerated trucks and trailers
- Cold Chain Logistics: Essential for maintaining temperature integrity in food, pharmaceutical, and frozen goods transport
- Industrial & Commercial Refrigeration: Suitable for walk-in coolers, freezers, and HVAC systems
- Mobile Refrigeration Units: Designed to withstand road vibrations and extreme operating environments
Product Highlights
JM Eco-Friendly Flange 4-Point 90° Elbow Tube Fitting with Side Service Valve Product Overview This high-performance pipeline fitting is engineered for refrigeration and cold chain applications. It features a side-mounted service valve for easy access in confined engine compartments, combined with a ...
