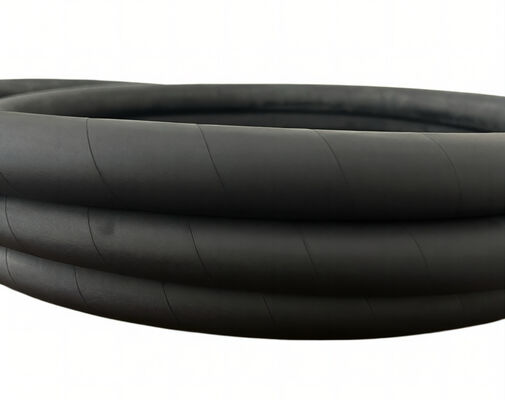

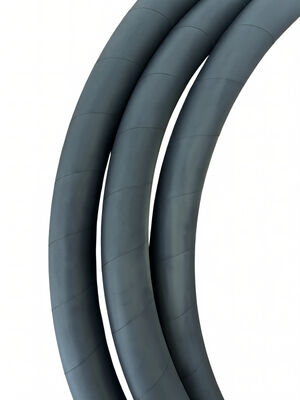

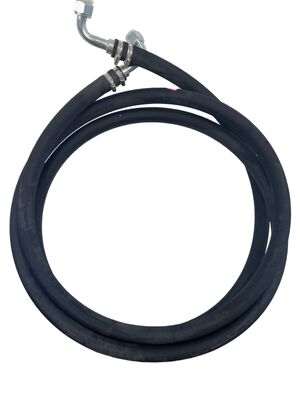

EA48 222 Refrigerated Truck Hose – High-Pressure, R404a Compatible for Heavy-Duty Cold Chain Transport
Product Details
| Product Type: | Refrigerated Truck Hose (Heavy-Duty) | Max Wall Thickness Difference: | 0.5 Mm |
|---|---|---|---|
| Minimum Bend Radius: | 135 Mm | Application: | Heavy-duty Refrigerated Trucks, Large Refrigerated Trailers, Cold Chain Transport Vehicles, Mobile Refrigeration Units (compatible With R404a Refrigerant) |
| Inner Diameter (ID): | 20 Mm - 22.7 Mm | Outer Diameter (OD): | 32.8 Mm - 33.8 Mm |
| Wall Thickness: | 5.45 Mm | ||
| Highlight |
R404a compatible refrigerated truck hose,high-pressure refrigerated truck hose,heavy-duty cold chain transport hose |
||
Product Description
- Precise dimensional control for perfect compatibility with refrigerated truck systems
- Superior pressure resistance with 3.5MPa working pressure and 18.0MPa burst pressure
- Excellent flexibility with 135mm minimum bend radius for easy installation
- Heavy-duty construction with 558g/m robust design for extended service life
- Wide temperature adaptability from -40℃ to +140℃
- R404a refrigerant compatibility for efficient cooling media delivery
- SAE J2064 industry standard compliance
| Parameter | Value |
|---|---|
| Part Number | EA48 222 |
| Product Type | Refrigerated Truck Hose (Heavy-Duty) |
| Inner Diameter (ID) | 20 mm - 22.7 mm |
| Outer Diameter (OD) | 32.8 mm - 33.8 mm |
| Wall Thickness | 5.45 mm |
| Max Wall Thickness Difference | 0.5 mm |
| Working Pressure | 3.5 MPa |
| Minimum Burst Pressure | 18.0 MPa |
| Fabric Layer | 1 Layer |
| Minimum Bend Radius | 135 mm |
| Weight | 558 g/m |
| Refrigerant | R404a |
| Working Temperature | -40℃ ~ +140℃ |
| Material | High-quality synthetic rubber with fabric reinforcement |
| Compliance Standard | SAE J2064 |
- Heavy-duty refrigerated trucks and large refrigerated semi-trailers
- Cold chain logistics vehicles for frozen food, pharmaceuticals, and fresh produce
- Mobile refrigeration units and large-scale transport refrigeration systems
- Air conditioning and cooling systems of heavy-duty commercial vehicles
- Industrial refrigeration equipment for cold chain storage and transport
Product Highlights
EA48 222 Refrigerated Truck Hose High-pressure, R404a compatible hose designed for heavy-duty cold chain transport applications. Key Features Precise dimensional control for perfect compatibility with refrigerated truck systems Superior pressure resistance with 3.5MPa working pressure and 18.0MPa ...
