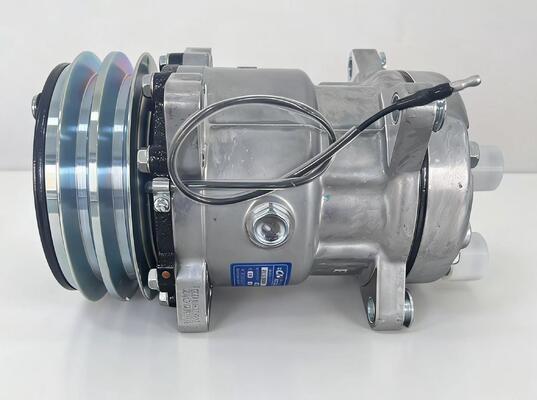

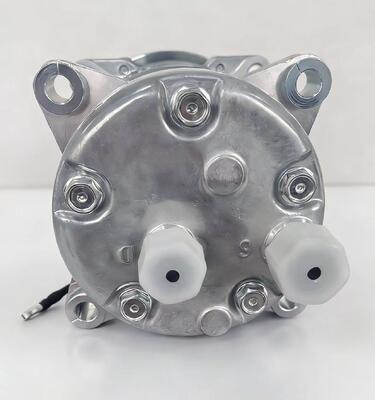

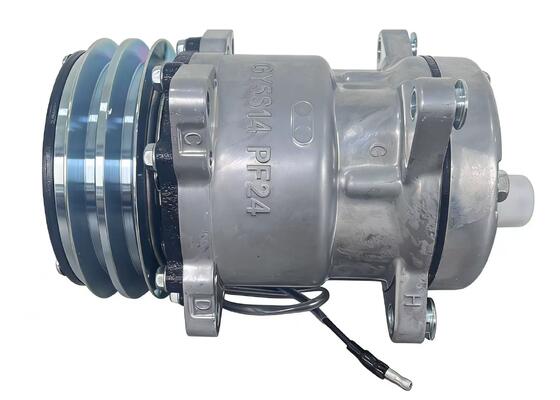

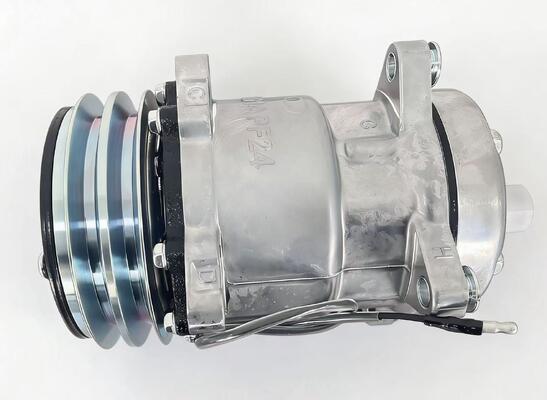

R404a 2A 12V Refrigeration Compressor | 5-Cylinder Cold Chain Compressor for Refrigerated Trucks & Cold Storage
Product Details
| Brand: | OEM / Customizable | Number Of Cylinders:: | 5 |
|---|---|---|---|
| Refrigerant Type: | R404a | Lubricant Oil: | POE-68 |
| Theoretical Displacement: | 138 Ml/r | Oil Charge: | 150ml |
| Voltage: | 12V & 24V | Max Speed: | 7000 R/min |
| Application: | Cold Chain, Heavy-Duty Vehicles, Multi-Zone AC Systems | Supply Ability: | In Stock & Bulk Order Available |
| Highlight |
R404a 12V refrigeration compressor,5-cylinder cold chain compressor,refrigerated truck compressor with warranty |
||
Product Description
- Large Displacement & High Cooling Efficiency: 138cc/rev displacement with cooling capacity up to 5000 kcal, ideal for large-space cooling applications
- Strong Adaptability for Various Vehicles: Suitable for heavy-duty vehicles including trucks, vans, excavators, and harvesters with 12V/24V compatibility
- High Speed & Stable Performance: Maximum rotation speed up to 7000r/min, continuous working speed at 6000r/min for reliable heavy-duty operation
- High Durability for Refit & Aftermarket: Robust aluminum/iron construction ideal for vehicle modification and aftermarket use
- Compatible with Multi-Zone Air Conditioning Systems: Supports 4-zone systems for independent temperature control in front and rear rows
| Parameter | Specification |
|---|---|
| Model | 5S14 |
| Number of Cylinders | 5 |
| Refrigerant | R404a |
| Lubricant Oil | POE-68 |
| Theoretical Displacement | 138 ml/r |
| Oil Charge | 150 mL |
| Voltage Compatibility | 12V & 24V |
| Max Speed | 7000 r/min |
| Continuous Working Speed | 6000 r/min |
| Speed (r/min) | Cooling Capacity (kW) | Input Power (kW) | COP (Energy Efficiency Ratio) | Volumetric Efficiency (%) |
|---|---|---|---|---|
| 1000 | 1.859 | 1.936 | 0.96 | 50.47 |
| 1500 | 2.795 | 2.496 | 1.12 | 50.59 |
| 2000 | 3.811 | 3.285 | 1.16 | 51.73 |
| 2500 | 4.518 | 4.610 | 0.98 | 49.06 |
| 3000 | 5.156 | 6.066 | 0.85 | 46.66 |
Product Highlights
R404a 2A 12V Refrigeration Compressor | 5-Cylinder Cold Chain Compressor for Refrigerated Trucks & Cold Storage Large Displacement & High Cooling Efficiency The 5S14 compressor features a 138 ml/r theoretical displacement, delivering up to 5000 kcal of cooling capacity. It is specifically designed ...
