HT-480 Vehicle Refrigeration Unit with Inner Grooved Copper Tube and Parallel Flow Condenser for R404a Refrigerant

HT-480 Vehicle Refrigeration Unit with Inner Grooved Copper Tube and Parallel Flow Condenser for R404a Refrigerant

HT-480 Vehicle Refrigeration Unit with Inner Grooved Copper Tube and Parallel Flow Condenser for R404a Refrigerant

Brand Name: Huasheng/OEM
Model Number: HT-480
MOQ: 1SET
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: Negotiable
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Evaporator:
Inner Grooved Copper Tube
Condenser:
Parallel Flow Condenser
Refrigerant Charge:
R404a
Temperature Range:
-18°C To +20°C
Packaging Details:
Negotiable
Supply Ability:
Negotiable
Highlight:

Inner Grooved Copper Tube Refrigeration Unit

,

Parallel Flow Condenser Vehicle Refrigeration Unit

,

R404a Refrigerant Truck Refrigeration Unit

Product Description
HT-480 Refrigeration Units for Cold Transportation Box Volume ≤18m³
Product Overview
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser, lightweight and compact with excellent heat exchange
  • Inner grooved copper tube evaporator with large airflow and enhanced coil protection
  • Strong, reliable compressor specifically designed for R404a systems
  • Digital display control panel for minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance

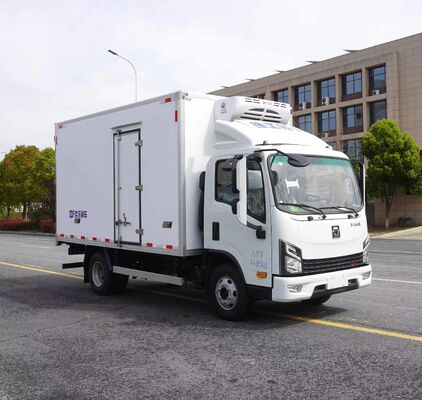

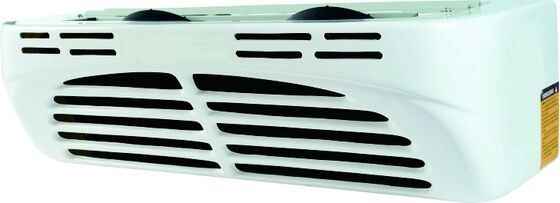

Product Images
HT-480 Vehicle Refrigeration Unit with Inner Grooved Copper Tube and Parallel Flow Condenser for R404a Refrigerant 0 HT-480 Vehicle Refrigeration Unit with Inner Grooved Copper Tube and Parallel Flow Condenser for R404a Refrigerant 1 HT-480 Vehicle Refrigeration Unit with Inner Grooved Copper Tube and Parallel Flow Condenser for R404a Refrigerant 2
Technical Specifications
Unit Model HT-480
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤18m³
Cooling Capacity at 0℃ 4750 W
Cooling Capacity at -18℃ 2130 W
Compressor Model 5H14
Compressor CC 135 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 2 PCS
Condenser Material Parallel flow condenser
Condenser Fans 2 PCS
Refrigerant R404a
Refrigerant Charge 1.4KG
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Defrosting System Hot gas defrost automatically
Evaporator Weight 26 KG
Condenser Weight 35 KG
Evaporator Dimensions 1010×640×250 mm
Condenser Dimensions 1170×520×415 mm
Drive Model Non-independent engine driven
Important Notes

1. The applicable compartment volume is for reference only. Actual performance depends on compartment volume, insulation quality, environmental temperature, and transported goods.

2. Compressor operates at 2000 rpm, with 12V/24V voltage selection available as required.

Why Choose Our Refrigeration Units
  • Technological Leadership: Advanced technology and skilled team delivering industry-leading truck refrigeration units
  • Customization Capabilities: Tailored solutions for size, capacity, temperature range, and special requirements
  • Quality Assurance: Strict quality control with premium materials and rigorous testing for reliability and durability
  • Customer Service: Comprehensive support including technical assistance, timely delivery, and after-sales service
  • Energy Efficiency: Advanced energy-saving technologies that reduce operating costs and support environmental sustainability
