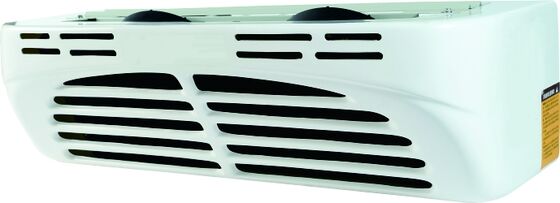

HT-380 Truck Refrigeration Unit with Parallel Flow Condenser for ≤14 m³ Box Volume and Dayin Compressor
Product Details
| Model: | HT-380 | Condenser: | Parallel Flow Condenser |
|---|---|---|---|
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 3510W |
| Cooling Capacity(-18℃): | 1970W | Application Box Volume: | ≤14 M3 |
| Outside Temperature: | 30°C To 50 °C | Compressor Brand: | Dayin |
| Compressor Mode: | 5H14 | Compressor Displacement: | 135 CC |
| Highlight |
Parallel Flow Condenser Truck Refrigeration Unit,≤14 m³ Box Volume Lorry Refrigeration Unit,Dayin Compressor Refrigerated Truck Unit |
||
Product Description
| Unit Model | HT-380 |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤14m³ |
| Cooling Capacity |
0℃: 3510 W
-18℃: 1970 W
|
| Compressor |
Model: 5H14
CC: 138 CC
Lubricating Oil: PAG 68
|
| Evaporator |
Material: Inner grooved copper tube
Number of Fans: 2 PCS
Weight: 17 KG
Dimensions: 1010×580×210 mm
|

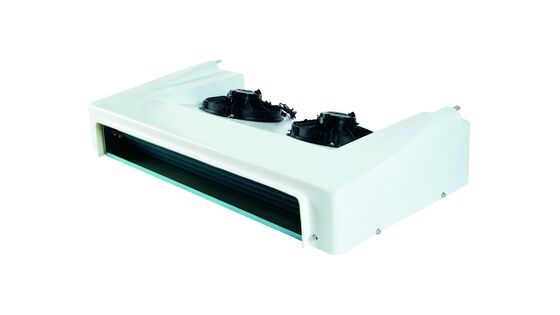

| Condenser |
Material: Parallel flow condenser
Number of Fans: 2 PCS
Weight: 26 KG
Dimensions: 1040×470×310 mm
|
| Refrigerant | R404a |
| Refrigerant Charge | 1.3KG |
| Box Temperature Adjustment | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting | Hot gas defrost automatically |
| Drive Model | Non-independent engine driven |
Product Highlights

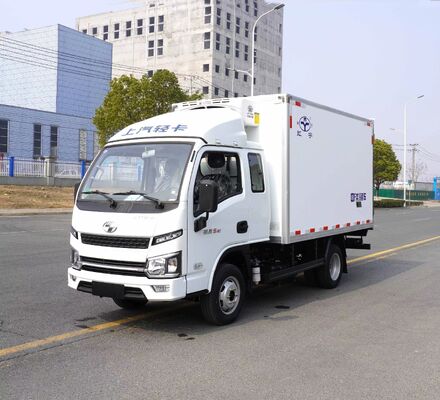

HT-380 Refrigeration Units for Cooling Vans Designed for refrigerated trucks with box volume up to 14m³, the HT-380 Lorry Refrigeration Unit delivers optimal cooling performance with advanced technology and reliable operation. Product Overview The HT-380 Lorry Refrigeration Unit is engineered for ...
