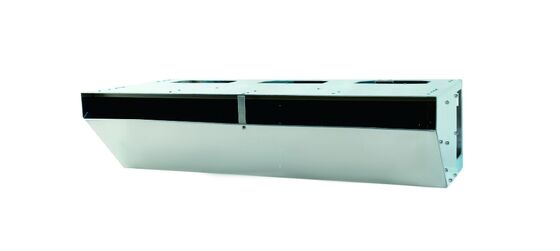

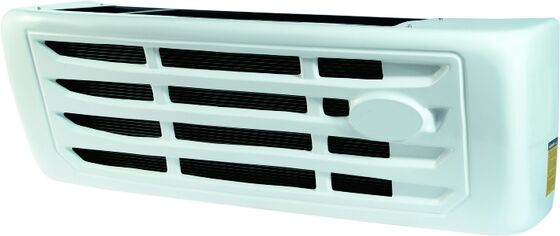

HT-880 Truck Refrigeration Unit with 7500W Cooling Capacity for 40 m³ Box Volume and Parallel Flow Condenser
Product Details
| Model: | HT-880 | Temperature Range: | -25°C To +25°C |
|---|---|---|---|
| Cooling Capacity(0℃): | 7500W | Cooling Capacity(-18℃): | 4765W |
| Application Box Volume: | ≤40 M3 | Outside Temperature: | 30°C To 50 °C |
| Compressor Brand: | Guangyu | Compressor Mode: | GY21 |
| Compressor Displacement: | 209 CC | Condenser: | Parallel Flow Condenser |
| Evaporator: | Inner Grooved Copper Tube&aluminum Fin | ||
| Highlight |
HT-880 truck refrigeration unit,cold chain transport refrigeration unit,40 m³ truck refrigeration unit |
||
Product Description
- Direct engine drive system for efficient power transfer
- Eco-friendly refrigerant options (R404A standard, R134a available)
- Corrosion-resistant FRP canning material for durability
- Aluminum fin parallel flow condenser for optimal heat exchange
- Inner grooved copper tube evaporator with protective design
- High-performance R404a compressor system
- User-friendly digital display control panel
- Comprehensive safety protection with HP/LP switches
- Hot gas automatic defrost system
- Easy installation and maintenance
- Ideal for long-distance transportation
| Parameter | Specification |
|---|---|
| Model | HT-880 |
| Operating Temperature Range | -25°C to +25°C |
| Recommended Box Volume | ≤40m³ |
| Cooling Capacity (0℃/+30℃) | 7500 W |
| Cooling Capacity (-18℃/+30℃) | 4765 W |
| Compressor Model | GY21/JS32 |
| Compressor Displacement | 209/328 CC |
| Lubricating Oil | PAG 68 |
| Evaporator Material | Inner grooved copper tube |
| Evaporator Fans | 3 PCS |
| Condenser Material | Parallel flow condenser |
| Condenser Fans | 3 PCS |
| Refrigerant | R404a |
| Refrigerant Charge | 3.3KG |
| Temperature Control | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrost System | Hot gas defrost automatically |
| Evaporator Weight | 37 KG |
| Condenser Weight | 55 KG |
| Evaporator Dimensions (mm) | 1240*600*345 |
| Condenser Dimensions (mm) | 1480*500*510 |
| Drive Model | Non-independent engine driven |
