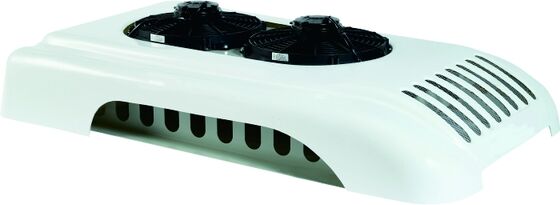

X-38 Roof-top Transport Refrigeration Unit with Direct Engine Drive and Parallel Flow Condenser for Vans -25°C To +25°C
Product Details
| Model: | X-38 | Condenser: | Parallel Flow Condenser |
|---|---|---|---|
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 2530W |
| Cooling Capacity(-18℃): | 1530W | Application Box Volume: | ≤8 M3 |
| Outside Temperature: | 30°C To 50 °C | Compressor Brand: | Dayin |
| Compressor Mode: | 5H14 | Compressor Displacement: | 138 CC |
| Evaporator: | Inner Grooved Copper Tube&aluminum Fin | ||
| Highlight |
van refrigeration unit with direct drive,roof-top transport refrigeration unit,X-38 van refrigeration system |
||
Product Description
- Direct engine drive system powered by vehicle engine
- Ideal for transporting chilled and frozen foods, medical supplies, fruits, vegetables, ice cubes, and seafood
- OEM customization services available
- Low operational and maintenance costs
- Easy installation process
- Optimized for long-distance transportation requirements
- Eco-friendly refrigerant R404A (R134a system also available)
- Corrosion-resistant high-strength FRP canning material
- Aluminum fin parallel flow condenser - lightweight, compact design with excellent heat exchange efficiency
- Inner grooved copper tube evaporator with large airflow and enhanced coil protection
- Robust, reliable compressor specifically designed for R404a systems
- Digital display control panel for minimal operation complexity
- High and low pressure switch safety protection
- Large cooling capacity with reliable performance
| Parameter | Specification |
|---|---|
| Unit Model | X-38 |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤8m³ |
| Cooling Capacity at 0℃ | 2530 W |
| Cooling Capacity at -18℃ | 1530 W |
| Compressor Model | 5H14 |
| Compressor CC | 138 CC |
| Lubricating Oil | PAG 68 |
| Evaporator Material | Inner grooved copper tube |
| Evaporator Fans | 1 PCS |
| Condenser Material | Parallel flow condenser |
| Condenser Fans | 2 PCS |
| Refrigerant | R404a |
| Refrigerant Charge | 1.0KG |
| Temperature Control | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting System | Hot gas defrost automatically |
| Evaporator Weight | 13 KG |
| Condenser Weight | 27 KG |
| Evaporator Dimensions | 780×580×210 mm |
| Condenser Dimensions | 1150×690×250 mm |
| Drive Model | Non-independent engine driven |
Product Highlights
X-38 Roof-top Transport Refrigeration Unit For Van The X-38 is a high-performance roof-top transport refrigeration unit specifically designed for refrigerated vans up to 8m³ capacity. Engineered for reliable temperature control during long-distance transportation of perishable goods. Key Advantages ...
