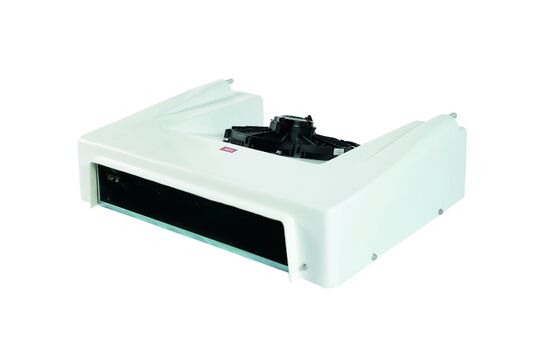

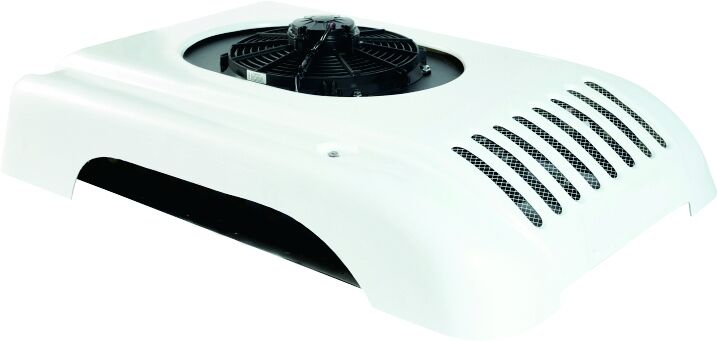

Top-mounted Van Refrigeration System X-28 Box Volume ≤6 m³
Product Details
| Model: | X-28 | Evaporator: | Inner Grooved Copper Tube&aluminum Fin |
|---|---|---|---|
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 21500W |
| Cooling Capacity(-18℃): | 1130W | Application Box Volume: | ≤6 M3 |
| Outside Temperature: | 30°C To 50 °C | Compressor Brand: | Dayin |
| Compressor Mode: | 5H14 | Compressor Displacement: | 138 CC |
| Highlight |
top-mounted van refrigeration system,van refrigeration unit under 6 m³,X-28 van cooling system |
||
Product Description
- Direct engine drive system for efficient operation
- Designed for 40m³ refrigerated trucks to transport chilled & frozen foods, medical supplies, produce, seafood, and ice
- OEM customization services available
- Low operational and maintenance costs
- Easy installation process
- Ideal for long-distance transportation
- Eco-friendly refrigerant R404A (R134a system also available)
- Corrosion-resistant, high-strength FRP canning material
- Aluminum fin parallel flow condenser - lightweight, compact design with excellent heat exchange
- Inner grooved copper tube evaporator with large airflow and coil protection
- Reliable, stable compressor specifically designed for R404a systems
- User-friendly digital display control panel
- HP and LP switch safety protection
- High cooling capacity with dependable performance
| Unit Model | X28 |
|---|---|
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤6m³ |
| Cooling Capacity (W) |
0℃: 2150 W
-18℃: 1130 W
|
| Compressor |
Model: 5H14
CC: 138 CC
Lubricating Oil: PAG 68
|
| Evaporator |
Material: Inner grooved copper tube
Number of Fans: 1 PCS
|
| Condenser |
Material: Parallel flow condenser
Number of Fans: 1 PCS
|
| Refrigerant | R404a |
| Refrigerant Charge | 0.8KG |
| Box Temperature Adjustment | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting | Hot gas defrost automatically |
| Weight/Dimensions |
Evaporator: 13 KG (780*580*210 mm)
Condenser: 21 KG (960*690*250 mm)
|
| Drive Model | Non-independent engine driven |
