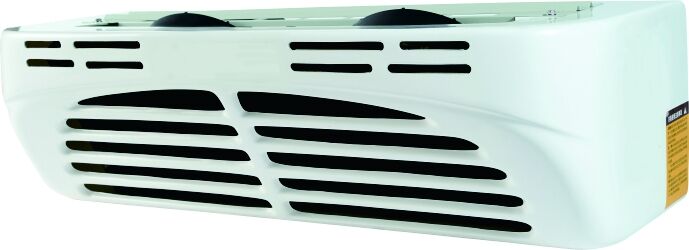

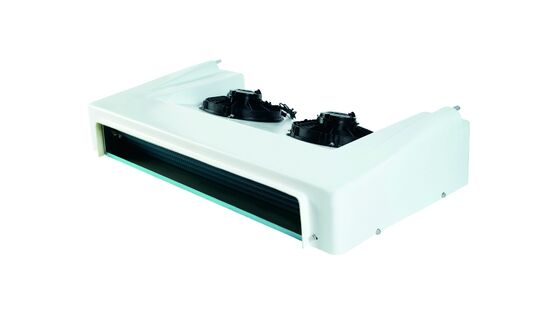

HT-380 Truck Refrigeration Unit van chiller unit
Product Details
| Model: | HT-380 | Condenser: | Parallel Flow Condenser |
|---|---|---|---|
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 3510W |
| Cooling Capacity(-18℃): | 1970W | Application Box Volume: | ≤14 M3 |
| Outside Temperature: | 30°C To 50 °C | Compressor Brand: | Dayin |
| Compressor Mode: | 5H14 | Compressor Displacement: | 135 CC |
| Highlight |
HT-380 truck refrigeration unit,van chiller refrigeration unit,truck refrigeration unit with warranty |
||
Product Description
The HT-380 Lorry Refrigeration Unit is an ideal solution for refrigerated trucks. Featuring a white color and 220V/50Hz voltage, this Lorry Refrigeration Unit is designed for maximum performance. The evaporator coil is built for maximum efficiency and the advanced R134a refrigerant ensures the cooling system is reliable and operates at peak performance. This Lorry Refrigeration Unit delivers the perfect combination of design and technology to ensure a reliable and efficient refrigerated truck unit.
Installation Pictures:
Technical Parameters:
| Unit Model | HT-380 | |
| Applicable Temperature(℃) | -25℃ ~ +25℃ | |
| Box Volume (m³) | ≤14m³ | |
|
Cooling Capacity (W) |
0℃ | 3510 W |
| -18℃ | 1970 W | |
| Compressor | Model | 5H14 |
| CC | 138 CC | |
| Lubricating Oil | PAG 68 | |
| Evaporator | Material | Inner grooved copper tube |
| Number of Fans | 2 PCS | |
|
Condenser |
Material | Parallel flow condenser |
| Number of Fans | 2 PCS | |
| Refrigerant | R404a | |
| Refrigerant Charge | 1.3KG | |
| Box Temperature Adjustment | Electronic digital display | |
| Safety Protect | High and low pressure switch | |
| Defrosting | Hot gas defrost automatically | |
| Weight/Dimensions | Evaporator | 17 KG |
| Condenser | 26 KG | |
| Evaporator | 1010*580*210 | |
| Condenser | 1040*470*310 | |
| Drive Model | Non-independent engine driven | |
Product Highlights
The HT-380 Lorry Refrigeration Unit is an ideal solution for refrigerated trucks. Featuring a white color and 220V/50Hz voltage, this Lorry Refrigeration Unit is designed for maximum performance. The evaporator coil is built for maximum efficiency and the advanced R134a refrigerant ensures the ...
