X-38 Roof-top Transport Refrigeration Unit with Parallel Flow Condenser and Direct Engine Drive for Vans (-25°C To +25°C)

Name: X-38 Roof-top Transport Refrigeration Unit with Parallel Flow Condenser and Direct Engine Drive for Vans (-25°C To +25°C)
Brand: Sichuan Yinhuasheng Technology Co., Ltd.
SKU: X-38
Availability: InStock

Brand Name:	Yinhuasheng/OEM
Model Number:	X-38
MOQ:	1SET
Price:	Negotiable
Payment Terms:	TT/LC
Supply Ability:	1000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ISO9001

Model:

X-38

Condenser:

Parallel Flow Condenser

Temperature Range:

-25°C To +25°C

Cooling Capacity(0℃):

2530W

Cooling Capacity(-18℃):

1530W

Application Box Volume:

≤8 M3

Outside Temperature:

30°C To 50 °C

Compressor Brand:

Dayin

Compressor Mode:

5H14

Compressor Displacement:

138 CC

Evaporator:

Inner Grooved Copper Tube&aluminum Fin

Packaging Details:

Negotiable

Supply Ability:

1000 sets per month

Highlight:

Parallel Flow Condenser Van Refrigeration Unit

Temperature Range -25°C To +25°C Transport Refrigeration Unit

Direct Engine Drive Roof-top Refrigeration Unit

Product Description

X-38 Roof-top Transport Refrigeration Unit For Van

The X-38 is a high-performance roof-top transport refrigeration unit specifically designed for refrigerated vans up to 8m³ capacity. Engineered for reliable temperature control during long-distance transportation of perishable goods.

Key Advantages

Direct engine drive system powered by vehicle engine
Ideal for transporting chilled and frozen foods, medical supplies, fruits, vegetables, ice cubes, and seafood
OEM customization services available
Low operational and maintenance costs
Easy installation process
Optimized for long-distance transportation requirements

Technical Features

Eco-friendly refrigerant R404A (R134a system also available)
Corrosion-resistant high-strength FRP canning material
Aluminum fin parallel flow condenser - lightweight, compact design with excellent heat exchange efficiency
Inner grooved copper tube evaporator with large airflow and enhanced coil protection
Robust, reliable compressor specifically designed for R404a systems
Digital display control panel for minimal operation complexity
High and low pressure switch safety protection
Large cooling capacity with reliable performance

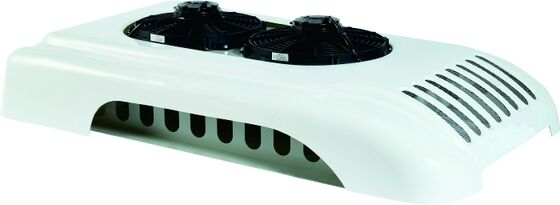

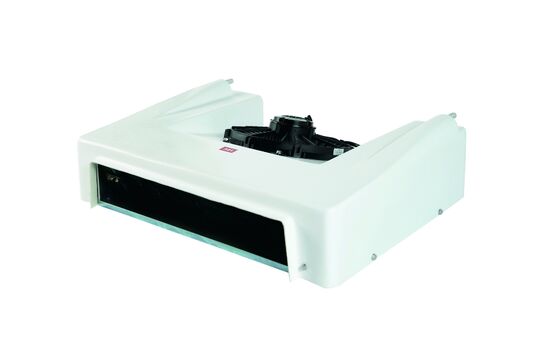

Product Images

Technical Parameters

Parameter	Specification
Unit Model	X-38
Applicable Temperature	-25℃ ~ +25℃
Box Volume	≤8m³
Cooling Capacity at 0℃	2530 W
Cooling Capacity at -18℃	1530 W
Compressor Model	5H14
Compressor CC	138 CC
Lubricating Oil	PAG 68
Evaporator Material	Inner grooved copper tube
Evaporator Fans	1 PCS
Condenser Material	Parallel flow condenser
Condenser Fans	2 PCS
Refrigerant	R404a
Refrigerant Charge	1.0KG
Temperature Control	Electronic digital display
Safety Protection	High and low pressure switch
Defrosting System	Hot gas defrost automatically
Evaporator Weight	13 KG
Condenser Weight	27 KG
Evaporator Dimensions	780×580×210 mm
Condenser Dimensions	1150×690×250 mm
Drive Model	Non-independent engine driven
