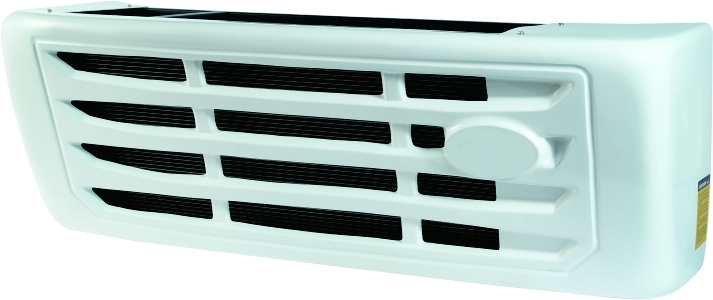

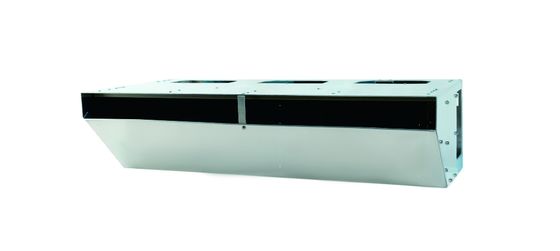

HT-880 Truck Refrigeration Unit for Direct Engine Drive

Name: HT-880 Truck Refrigeration Unit for Direct Engine Drive
Brand: Sichuan Yinhuasheng Technology Co., Ltd.
SKU: HT-880
Availability: InStock

Brand Name:	Yinhuasheng/OEM
Model Number:	HT-880
MOQ:	1SET
Price:	Negotiable
Payment Terms:	TT/LC
Supply Ability:	1000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

HT-880

Temperature Range:

-25°C To +25°C

Cooling Capacity(0℃):

7500W

Cooling Capacity(-18℃):

4765W

Application Box Volume:

≤40 M3

Outside Temperature:

30°C To 50 °C

Compressor Brand:

Guangyu

Compressor Mode:

GY21

Compressor Displacement:

209 CC

Condenser:

Parallel Flow Condenser

Evaporator:

Inner Grooved Copper Tube&aluminum Fin

Packaging Details:

Negotiable

Supply Ability:

1000 sets per month

Highlight:

-25°C To +25°C Truck Refrigeration Unit

7500W Van Refrigeration Unit

Direct Engine Drive Vehicle Refrigeration Unit

Product Description

Truck VAN Refrigeration Unit For Cold Transportation HT-880

Designed for 40m³ refrigerated trucks, the HT-880 refrigeration unit provides reliable temperature control for transporting chilled and frozen goods including food, medical supplies, produce, and seafood. Engine-driven for efficient operation with low service costs.

Key Features

Direct engine drive system for efficient power transfer
Eco-friendly refrigerant options (R404A standard, R134a available)
Corrosion-resistant FRP canning material for durability
Aluminum fin parallel flow condenser for optimal heat exchange
Inner grooved copper tube evaporator with protective design
High-performance R404a compressor system
User-friendly digital display control panel
Comprehensive safety protection with HP/LP switches
Hot gas automatic defrost system
Easy installation and maintenance
Ideal for long-distance transportation

Product Images

Technical Specifications

Parameter	Specification
Model	HT-880
Operating Temperature Range	-25°C to +25°C
Recommended Box Volume	≤40m³
Cooling Capacity (0℃/+30℃)	7500 W
Cooling Capacity (-18℃/+30℃)	4765 W
Compressor Model	GY21/JS32
Compressor Displacement	209/328 CC
Lubricating Oil	PAG 68
Evaporator Material	Inner grooved copper tube
Evaporator Fans	3 PCS
Condenser Material	Parallel flow condenser
Condenser Fans	3 PCS
Refrigerant	R404a
Refrigerant Charge	3.3KG
Temperature Control	Electronic digital display
Safety Protection	High and low pressure switch
Defrost System	Hot gas defrost automatically
Evaporator Weight	37 KG
Condenser Weight	55 KG
Evaporator Dimensions (mm)	1240×600×345
Condenser Dimensions (mm)	1480×500×510
Drive Model	Non-independent engine driven

OEM customization available - Contact us for specific requirements and configurations to meet your transportation needs.
