EV-600MB Mono-Block Refrigeration Unit with -25°C To +25°C Temperature Range and 5850W Cooling Capacity for NEV Trucks

Name: EV-600MB Mono-Block Refrigeration Unit with -25°C To +25°C Temperature Range and 5850W Cooling Capacity for NEV Trucks
Brand: Sichuan Yinhuasheng Technology Co., Ltd.
SKU: EV-600MB
Availability: InStock

Brand Name:	Yinhuasheng/OEM
Model Number:	EV-600MB
MOQ:	1SET
Price:	Negotiable
Payment Terms:	TT/LC
Supply Ability:	1000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

EV-600MB

Temperature Range:

-25°C To +25°C

Cooling Capacity(0℃):

5850W

Cooling Capacity(-18℃):

3400W

Application Box Volume:

≤22 M3

Outside Temperature:

30°C To 50 °C

Compressor Brand:

Highly

Compressor Mode:

DTH356

Compressor Displacement:

PAG 68

Condenser:

Parallel Flow Condenser

Evaporator:

Inner Grooved Copper Tube&aluminum Fin

Packaging Details:

Negotiable

Supply Ability:

1000 sets per month

Highlight:

EV-600MB Mono-Block Refrigeration Unit

-25°C To +25°C Refrigeration Unit

5850W Cooling Capacity Refrigeration Unit

Product Description

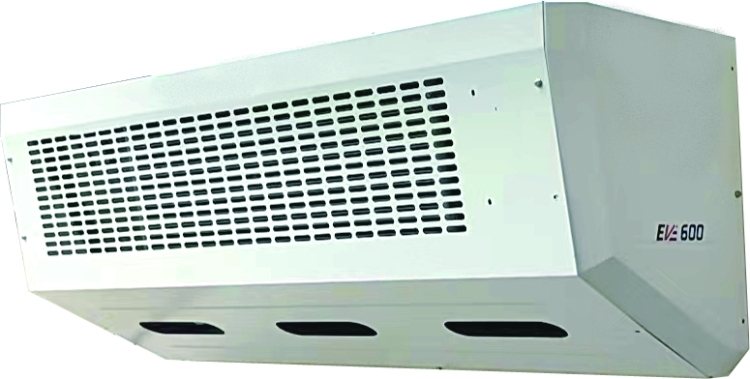

Mono-Block Electric Refrigeration System for van EV-600MB

This Mono-block refrigeration unit is powered by the vehicle battery, specifically designed for NEV full electric trucks and widely used for reefer truck boxes up to 22m³. Yinhuasheng units are the preferred choice for customers seeking durability, reliability, low operational costs, and minimal handling charges.

Standard Features

Applicable for small and medium sized new energy vehicles
High grade (IP67) water-proof and insulation design, AC-DC interlock and four in one design
Ultra-slim fiberglass evaporator or Al-alloy evaporator, with high air flow capacity
Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed
Compressor integrated inside the condenser unit for compact design
Multi-functional LCD controller with precise temperature control, full display, easy operation, fault codes and alarms
No interference between charging and unit operation, saving charging time and extending battery life
HP and LP switch safety protection
Standard AC220V standby for parking cooling

Product Images

Technical Specifications

Parameter	Value
Unit Model	EV-600MB
Applicable Temperature	-25℃ ~ +25℃
Box Volume	≤22m³
Cooling Capacity (0℃)	5850 W
Cooling Capacity (-18℃)	3400 W
Compressor Model	DTH356
Lubricating Oil	PAG 68
Evaporator Material	Inner grooved copper tube
Evaporator Fans	3 PCS
Condenser Material	Parallel flow condenser
Condenser Fans	2 PCS
Refrigerant	R404a
Refrigerant Charge	2.0KG
Box Temperature Adjustment	Electronic digital display
Safety Protection	High and low pressure switch
Defrosting	Hot gas defrost automatically
Weight/Dimensions	1830570680mm (＜151KG)
Drive Model	Full electric drive
