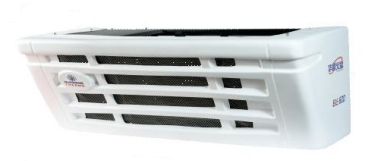

EV-600 Electric Refrigeration Unit for NEV Trucks 22m³ 5750W
Product Details
| Model: | EV-600 | Evaporator: | Inner Grooved Copper Tube&aluminum Fin |
|---|---|---|---|
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 5750W |
| Cooling Capacity(-18℃): | 3380W | Application Box Volume: | ≤22 M3 |
| Compressor Brand: | Highly | Compressor Displacement: | PAG 68 |
| Highlight |
EV truck refrigeration unit 22m³,electric refrigeration unit for NEV trucks,EV-600 cooling system with warranty |
||
Product Description
Products Description:

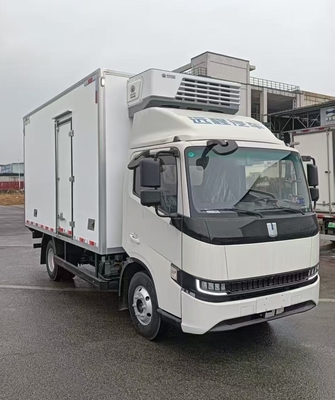

Powered by the vehicle battery, our EV-600 unit is specially designed for NEV full electric trucks.
Which is widely be used for reefer truck box size of 22m³.

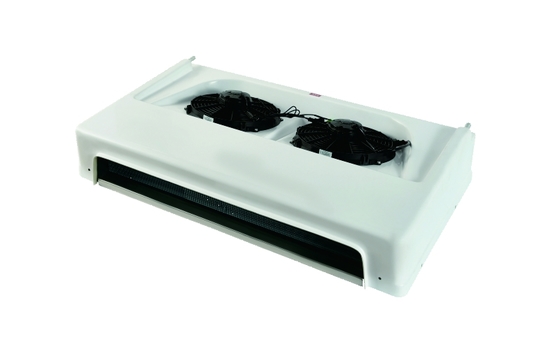

The embedded evaporator does not occupy the interior space of the carriage.
Standard Features:
1.Applicable for small and medium sized new energy vehicles.
2. High grade(IP67) water-proof and insulation design, AC-DC interlock and four in one design.
3. Ultra-slim fiberglass evaporator or Al-alloy evaporator, with big air flow.
4. Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed.
5. The compressor is inbuilt inside the condenser unit, compact design.
6. Multi-functional and LCD controller, precise temperature control, fully display and easy operation, with fault codes and alarms.
7. None-interference between charging and unit running, saving charging time and extending the service life of battery.
8. HP and LP switch safety protection.
9. Standard AC220V standby for parking cooling.
Technical parameters:
| Unit Model | EV-600 | |
| Applicable Temperature(℃) | -25℃ ~+25℃ | |
| Box Volume (m³) | ≤22m³ | |
|
Cooling Capacity (W) |
0℃ | 5750 W |
| -18℃ | 3380 W | |
| Compressor | Model | / |
| Lubricating Oil | PAG 68 | |
| Evaporator | Material | Inner grooved copper tube |
| Number of Fans | 2 PCS | |
|
Condenser |
Material | Parallel flow condenser |
| Number of Fans | 2 PCS | |
| High Voltage | DC250V-DC450V/DC380V-DC750V | |
| Low Voltage Power | DC-DC | |
| Control Voltage | DC12V(9-16V)/DC24V(16-32V) | |
| Refrigerant | R404a | |
| Refrigerant Charge | 1.8 KG | |
| Box Temperature Adjustment | Electronic digital display | |
| Safety Protect | High and low pressure switch | |
| Defrosting | Hot gas defrost automatically | |
| Weight/Dimensions | Evaporator | 24.5 KG |
| Condenser | ＜90 KG | |
| Evaporator | 1130*650*220 | |
| Condenser | 1500*650*530 | |
| Drive Model | Full electric driven | |
