HT-680MB Vehicle Refrigeration Unit 6300W Cooling 27m3 Capacity
Product Details
| Model: | HT-680MB | Temperature Range: | -25°C To +25°C |
|---|---|---|---|
| Cooling Capacity(0℃): | 6300W | Cooling Capacity(-18℃): | 3170W |
| Application Box Volume: | ≤27 M3 | Outside Temperature: | 30°C To 50 °C |
| Evaporator: | Inner Grooved Copper Tube&aluminum Fin | Compressor Brand: | Guangyu |
| Compressor Mode: | GY21/GY17 | Compressor Displacement: | 209/177 CC |
| Highlight |
mono-block vehicle refrigeration unit,cold chain transportation refrigeration unit,HT680MB vehicle refrigeration unit |
||
Product Description
1. Direct engine drive.
2. Driven by vehicle engine, this is designed for 27m³ refrigerated trucks, to deliver the chill & frozen foods, medicals, fruits, vegetables, ice cube, sea foods, etc.
3. OEM customized service are avaliable.
4. Low operational cost and service cost.
5.Easily installation.
6.Suitable for long distance transportation.
7.The embedded evaporator does not occupy the interior space of the carriage.
8.Heating system as standard.

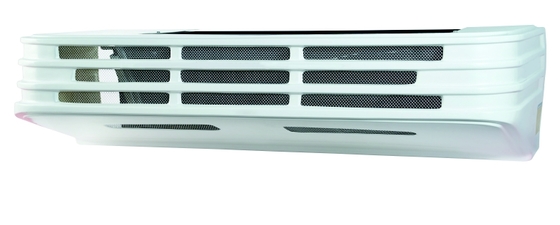

Product Pictures:
Features:
► Eco-friendly refrigerant R404A.
►Corrosion resistant and high strength FRP canning material.
► Aluminium fin parallel flow condenser, light and compact, with good heat exchanging.
► Inner grooved copper tube,with strong evaporator, with large airflow and good protection to the evaporator coils.
► Strong reliable and stable compressor for R404a systems specially.
► Digital display control panel,minimal operation.
► HP and LP switch safety protection.
► Large cooling capacity, reliable performance.
Specification
| Unit Model | HT-680MB | |
| Applicable Temperature(℃) | -25℃ ~+25℃ | |
| Box Volume (m³) | ≤27m³ | |
|
Cooling Capacity (W) |
0℃ | 6300 W |
| 30℃ | 3170 W | |
| Compressor | Model | GY21 |
| CC | 209 CC | |
| Lubricating Oil | PAG 68 | |
| Evaporator | Material | Inner grooved copper tube |
| Number of Scroll Brushless Fans | 3 PCS | |
|
Condenser |
Material | Parallel flow condenser |
| Number of Fans | 2 PCS | |
| Refrigerant | R404a | |
| Refrigerant Charge | 2.8KG | |
| Box Temperature Adjustment | Electronic digital display | |
| Safety Protect | High and low pressure switch | |
| Defrosting | Hot gas defrost automatically | |
| Weight/Dimensions | 1840*700*650 ＜139 KG | |
| Drive Model | Non-independent engine driven | |
Product Highlights
1. Direct engine drive. 2. Driven by vehicle engine, this is designed for 27m³ refrigerated trucks, to deliver the chill & frozen foods, medicals, fruits, vegetables, ice cube, sea foods, etc. 3. OEM customized service are avaliable. 4. Low operational cost and service cost. 5.Easily installation. 6...
