HT-680 Truck Refrigeration Unit 6100W Cooling -25°C to +25°C
Product Details
| Model: | HT-680 | Temperature Range: | -25°C To +25°C |
|---|---|---|---|
| Evaporator: | Inner Grooved Copper Tube&aluminum Fin | Cooling Capacity(0℃): | 6100W |
| Cooling Capacity(-18℃): | 3130W | Application Box Volume: | ≤27 M3 |
| Outside Temperature: | 30°C To 50 °C | Condenser: | Parallel Flow Condenser |
| Compressor Brand: | Guangyu | Compressor Mode: | GY17 |
| Compressor Displacement: | 177 CC | ||
| Highlight |
CE certified truck refrigeration unit,vegetable fruit transport cooler,HT-680 refrigeration unit |
||
Product Description
Our product is a direct engine-driven refrigeration unit specifically designed for 40m³ refrigerated trucks. It operates by utilizing the vehicle's engine, making it ideal for transporting chilled and frozen foods, medical supplies, fruits, vegetables, ice cubes, seafood, and more.
We offer OEM customized services to meet specific customer requirements. With low operational and service costs, our unit provides a cost-effective solution. Installation is easy, and it is suitable for long-distance transportation. Experience efficient and reliable refrigeration with our engine-driven unit.
HT-680 CE Certification Vegetable Fruit Transportation Refrigeration Unit R404a
Features:
1. Eco-friendly refrigerant R404A(R134a system is also avalible).
2.Corrosion resistant and high strength FRP canning material.
3. Aluminium fin parallel flow condenser, light and compact, with good heat exchanging.
4. Inner grooved copper tube,with strong evaporator, with large airflow and good protection to the evaporator coils.
5. Strong reliable and stable compressor for R404a systems specially.
6. Digital display control panel,minimal operation.
7. HP and LP switch safety protection.
8. Large cooling capacity, reliable performance.

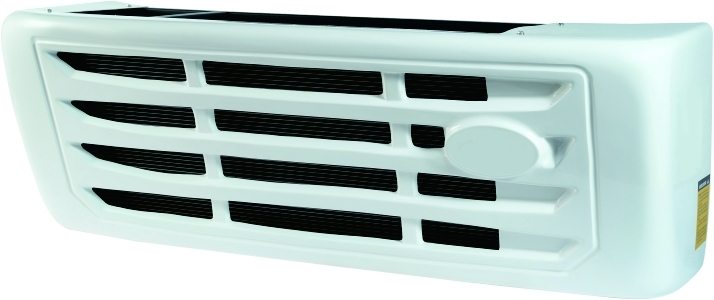

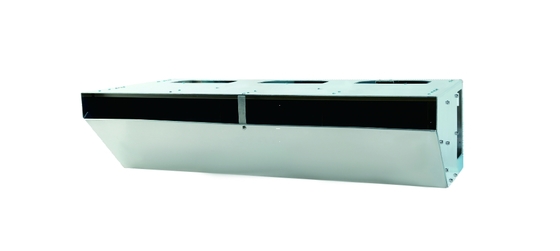

Product Pictures:
Technical Parameters:
| Unit Model | HT-680 | |
| Applicable Temperature(℃) | -25℃ ~ +25℃ | |
| Box volume (m³) | ≤27m³ | |
|
(W) Cooling Capacity |
0℃/+30℃ | 6100 W |
| -18℃/+30℃ | 3130 W | |
| Compressor | Model | GY17 |
| CC | 177 CC | |
| Lubricating oil | PAG 68 | |
| Evaporator | Material | Inner grooved copper tube |
| Number of fans | 3 | |
| Condenser | Material | Parallel flow condenser |
| Number of fans | 2 | |
| Refrigerant | R404a | |
| Refrigerant charge | 3.3 Kg | |
| Box Temperature Adjustment | Electronic digital display | |
| Safety Protect | High and low pressure switch | |
| Defrosting | Hot gas defrost automatically | |
| Weight/Dimensions | Evaporator | 31 Kg |
| Condenser | 49 Kg | |
| Evaporator | 1240*610*285 | |
| Condenser | 1480*500*510 | |
| Drive Model | Non-independent engine driven | |
