HT-1100 Engine Driven Box Van Refrigeration Unit 8425W Cooling
Product Details
| Model: | HT-1100 | Refrigerant: | R404A |
|---|---|---|---|
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 8425W |
| Cooling Capacity(-18℃): | 5365W | Application Box Volume: | ≤52 M3 |
| Outside Temperature: | 30°C To 50 °C | Compressor Brand: | Jianshe |
| Compressor Mode: | JS32 | Compressor Displacement: | 328 CC |
| Condenser: | Parallel Flow Condenser | Evaporator: | Inner Grooved Copper Tube&aluminum Fin |
| Highlight |
direct drive refrigeration unit HT-1100,box van refrigeration unit,engine directive driven refrigeration |
||
Product Description
HT-1100 Engine Directive Driven Box Van Refrigeration Unit R404a
Overview
The Engine Directive Driven Box Van Refrigeration Unit R404a is a refrigeration system specifically designed for box vans and operates using the R404a refrigerant. This unit is driven by the vehicle's engine and provides efficient cooling for temperature-controlled transportation.
Key features of the unit include:
-
Engine-driven operation: The refrigeration unit is powered by the vehicle's engine, utilizing the vehicle's existing power source for operation. This eliminates the need for additional power supply, making it highly convenient for transportation purposes.
-
Box van compatibility: The unit is designed to be installed and integrated seamlessly into box vans, ensuring optimal performance and space utilization within the vehicle's cargo area.
-
R404a refrigerant: The refrigeration system utilizes R404a refrigerant, which is widely recognized for its excellent cooling properties and compatibility with various temperature requirements.
-
Temperature control: The unit offers precise temperature control, allowing for the maintenance of consistent and desired temperature levels within the box van. This ensures the safe and proper storage of temperature-sensitive goods during transportation.
-
Reliability and durability: Built with high-quality components and robust construction, the unit is designed to withstand demanding transportation conditions, ensuring reliable and long-lasting performance.
-
Easy maintenance: The unit is designed for easy maintenance, enabling quick access to key components for servicing and repairs, minimizing downtime and maintenance costs.
The Engine Directive Driven Box Van Refrigeration Unit R404a provides a reliable and efficient solution for temperature-controlled transportation needs, offering precise temperature control and compatibility with box vans.
Specification
| Unit Model | HT-1100 | |
| Applicable Temperature(℃) | -25℃ ~ +25℃ | |
| Box Volume (m³) | ≤52m³ | |
|
(W) Cooling Capacity |
0℃ | 8425 W |
| -18℃ | 5365 W | |
| Compressor | Model | JS32 |
| CC | 328 CC | |
| Lubricating oil | PAG 68 | |
| Evaporator | Material | Inner grooved copper tube |
| Number of fans | 3 | |
| Condenser | Material | Parallel flow condenser |
| Number of fans | 4 | |
| Refrigerant charge | R404a | |
| Refrigerant charge | 4.0Kg | |
| Box Temperature adjustment | Electronic digital display | |
| Safety protect | High and low pressure switch | |
| Defrosting | Hot gas defrost automatically | |
| Weight/Dimensions | Evaporator | 41 Kg |
| Condenser | 63 Kg | |
| Evaporator | 1250*680*360 | |
| Condenser | 2130*385*360 | |
| Drive Model | Non-independent engine driven | |

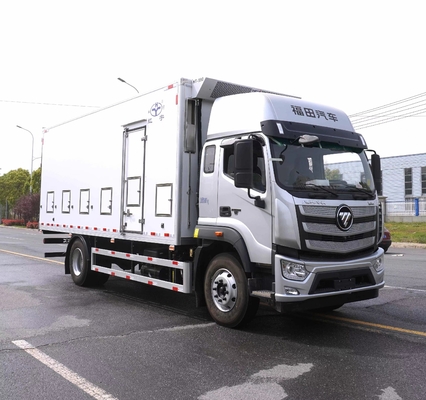

Installation Pictures
