Quality Electric Backup Power System with 2.2 KW Compressor for Parking Cooling Backup and 110V-420V AC Drive Transport Refrigeration Unit factory
>

Electric Backup Power System with 2.2 KW Compressor for Parking Cooling Backup and 110V-420V AC Drive Transport Refrigeration Unit

Brand Name: Yinhuasheng/OEM
Model Number: ZB-21
Place of Origin: China
Certification: CE/ISO9001
Minimum Order Quantity: 1SET
Price: Negotiable
Supply Ability: 1000 sets per month

Product Details


Model: DZ356 Temperature Range: -25°C To +25°C
Application Box Volume: 8-35 M3 Compressor Model: DBH356
Lubricating Oil: POE68 Compressor Watt: 2.2 KW
Low Voltage Power: AC-DC Control Voltage: DC12V(9-16V)/DC24V(16-32V)
Refrigerant: R404a Outside Temperature: 30°C To 50 °C
Drive Model: 110V-420V AC 50-60HZ
Highlight

Electric Backup Power System

,

Transport Refrigeration Unit Backup Power System

Product Description

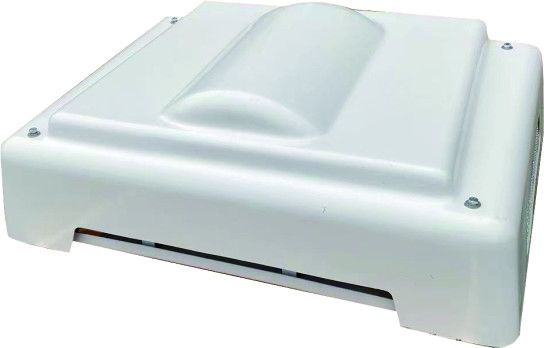

Electric Backup Power System Transport Refrigeration Unit
The electric backup power system provides continuous cooling when the truck is parked and the road compressor stops working. This unit operates on AC110V/AC380V city electricity and is primarily designed for medical transportation applications, installed on the top of the truck.
Key Features
  • Parking cooling backup system for uninterrupted temperature control
  • Compatible with 110V-420V backup power systems
  • No engine drive cooling required after parking
  • Low operation cost for efficient performance
  • High-reliability Emerson compressor for dependable operation
Electric Backup Power System with 2.2 KW Compressor for Parking Cooling Backup and 110V-420V AC Drive Transport Refrigeration Unit 0
Product Specifications
Unit Model DZ356
Applicable Temperature -25℃ ~ +25℃
Box Volume 6m³-17m³
Compressor Model DBH356
Lubricating Oil POE68
Power Rating 2.2 KW
Low Voltage Power AC-DC
Control Voltage DC12V(9-16V)/DC24V(16-32V)
Refrigerant R404a
Weight/Dimensions <41KG 720×530×250 mm
Drive Model 220v 50HZ
Frequently Asked Questions
How can I select the right products?
Refrigeration unit selection depends on multiple factors: truck box size, goods to be delivered, temperature requirements, ambient conditions, client performance requirements, and real opening frequency.
What's the minimum order quantity?
1 Set; Sample orders are available for evaluation.
How is product quality ensured?
  • Quality spare parts supply chain
  • Contracted technical workers
  • Well organized production conforming to ISO9001 and 14001 standards
  • Strict product testing before shipping
  • Scientifically designed packaging for protection
How is the warranty period?
18 months warranty period starting from when clients receive the goods.
How can I ask for compensation if there is a failure?
For products within warranty, users can request warranty service or replacement by providing photos or videos showing the exact failures and problems. Huasheng Thermo will provide technical support and free spare parts as needed.
