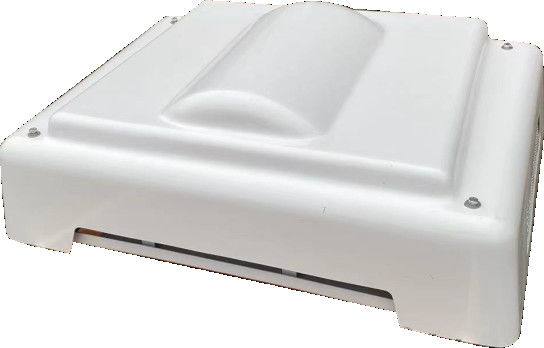

110V-220V Electric Backup Power System with Parking Cooling and High-Reliability Emerson Compressor for Transport Refrigeration
Product Details
| Model: | DZ356 | Temperature Range: | -25°C To +25°C |
|---|---|---|---|
| Application Box Volume: | 8-35 M3 | Compressor Model: | DBH356 |
| Lubricating Oil: | POE68 | Compressor Watt: | 2.2 KW |
| Low Voltage Power: | AC-DC | Control Voltage: | DC12V(9-16V)/DC24V(16-32V) |
| Refrigerant: | R404a | Outside Temperature: | 30°C To 50 °C |
| Drive Model: | 110V-420V AC 50-60HZ | ||
| Highlight |
Transport Refrigeration Unit Backup Power System,Roof Top Electric Backup Power System,220V Transport Refrigeration Unit |
||
Product Description
- Parking cooling backup system
- Suitable for 110V-420V backup systems
- No engine drive cooling required after parking
- Low operation cost
- High-reliability Emerson compressor
| Unit Model | DZ356 |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | 6m³-17m³ |
| Compressor Model | DBH356 |
| Lubricating Oil | POE68 |
| Power Rating | 2.2 KW |
| Low Voltage Power | AC-DC |
| Control Voltage | DC12V(9-16V)/DC24V(16-32V) |
| Refrigerant | R404a |
| Weight/Dimensions | <41KG 720*530*250 mm |
| Drive Model | 220v 50HZ |
- Quality spare parts supply chain
- Contracted technical workers
- Well organized production conforming to ISO9001 and 14001 standards
- Strict product testing before shipping
- Scientifically designed packing for protection
Product Highlights
Roof Top Electric Backup Power System 110V-220V Transport Refrigeration Unit The electric backup power system provides continuous cooling when the truck is parked and the road compressor stops working. Powered by AC110V/AC380V city electricity, this system is primarily designed for medical ...
