Truck Direct Drive Refrigeration Unit Installation HT680
Product Details
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 6100W |
|---|---|---|---|
| Cooling Capacity(-18℃): | 3130W | Application Box Volume: | ≤27 M3 |
| Outside Temperature: | 30°C To 50 °C | Compressor Brand: | Guangyu |
| Compressor Mode: | GY17 | Compressor Displacement: | 163 CC |
| Condenser: | Parallel Flow Condenser | Evaporator: | Inner Grooved Copper Tube&aluminum Fin |
| Highlight |
220V 50Hz Direct Drive Refrigeration Unit,Truck Direct Drive Refrigeration Unit Installation,truck refrigeration unit installation 220V 50H |
||
Product Description
HT680 220V/50Hz Power Supply Direct Drive Refrigeration Unit with Overload Protection
Product Description:
The HT680 Direct Drive Refrigeration Unit is a highly efficient and reliable refrigeration system designed for use in trucks and vans. It features a direct drive motor and external rotor, providing a low noise level of ≤55dB(A) and a power supply of 220V/50Hz. The unit is equipped with various protection systems, such as high/low pressure, overload and overheat, ensuring a safe operation. With its direct drive design, the Direct Drive Refrigeration Unit is ideal for a variety of applications, including cooling and freezing of food items in vans and trucks.
| Unit Model | HT-680 | |
| Applicable Temperature(℃) | -25℃ ~ +25℃ | |
| Box Volume (m³) | ≤27m³ | |
|
Cooling Capacity (W) |
0℃ | 6100 W |
| -18℃ | 3130 W | |

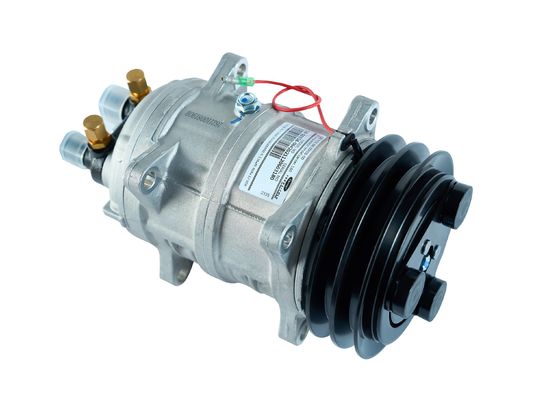

| Compressor | Model | GY21 |
| CC | 209 CC | |
| Lubricating Oil | PAG 68 | |

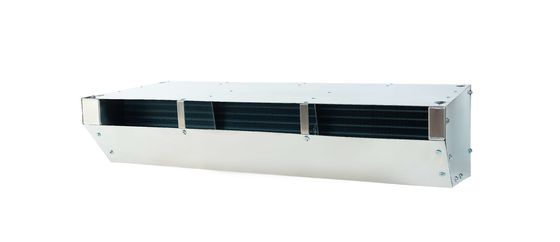

| Evaporator | Material | Inner grooved copper tube |
| Number of Fans | 3 PCS | |
|

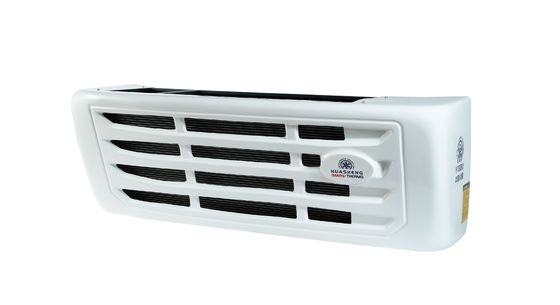

Condenser |
Material | Parallel flow condenser |
| Number of Fans | 2 PCS | |
| Refrigerant | R404a | |
| Refrigerant Charge | 2.7KG | |

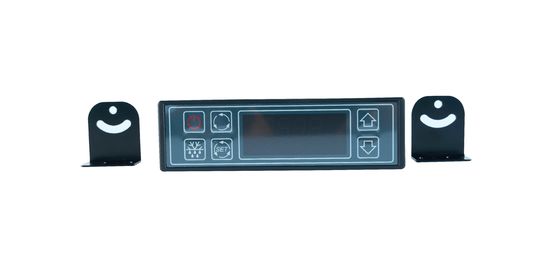

| Box Temperature Adjustment | Electronic digital display | |
| Safety Protect | High and low pressure switch | |
| Defrosting | Hot gas defrost automatically | |
| Weight/Dimensions | Evaporator | 31 KG |
| Condenser | 49 KG | |
| Evaporator | 1240*610*270 | |
| Condenser | 1480*500*510 | |
| Drive Model | Non-independent engine driven | |
Applications:
The Direct Drive Refrigeration Unit from YINHUASHENG is designed for refrigerated truck units and other industrial refrigeration systems. It comes with CE certification, 220V/50Hz power supply and low noise level ≤55dB(A). Additionally, it offers high/low pressure protection, overload protection and overheat protection. It is backed by a 1 Year Warranty and has 8000 Piece/Pieces per Year Supply Ability.
FAQ:
- Q: What is the brand name of the Direct Drive Refrigeration Unit?
A: The brand name of the Direct Drive Refrigeration Unit is YINHUASHENG. - Q: Where is the Direct Drive Refrigeration Unit manufactured?
A: The Direct Drive Refrigeration Unit is manufactured in CHINA. - Q: Does the Direct Drive Refrigeration Unit have a CE certification?
A: Yes, the Direct Drive Refrigeration Unit has a CE certification. - Q: What is the minimum order quantity for the Direct Drive Refrigeration Unit?
A: The minimum order quantity for the Direct Drive Refrigeration Unit is 1 piece. - Q: Is the price of the Direct Drive Refrigeration Unit negotiable?
A: Yes, the price of the Direct Drive Refrigeration Unit is negotiable.
