HT-200 Direct Drive Refrigeration Unit for ≤6 m3 Box Volume

Name: HT-200 Direct Drive Refrigeration Unit for ≤6 m3 Box Volume
Brand: Sichuan Yinhuasheng Technology Co., Ltd.
SKU: HT-200
Availability: InStock

Brand Name:	Yinhuasheng/OEM
Model Number:	HT-200
MOQ:	1SET
Price:	Negotiable
Payment Terms:	TT/LC
Supply Ability:	1000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

HT-200

Temperature Range:

-25°C To +25°C

Application Box Volume:

≤6 M3

Cooling Capacity(0℃):

2150W

Cooling Capacity(-18℃):

1130W

Condenser:

Parallel Flow Condenser

Evaporator:

Inner Grooved Copper Tube&aluminum Fin

Outside Temperature:

30°C To 50 °C

Compressor Brand:

Dayin

Compressor Mode:

5H14

Compressor Displacement:

138 CC

Packaging Details:

Negotiable

Supply Ability:

1000 sets per month

Highlight:

HT-200 direct drive refrigeration unit

direct drive refrigeration unit for 6m3 box

refrigeration unit with direct drive

Product Description

1. Direct engine drive.

2. Driven by vehicle engine, this is designed for 40m³ refrigerated trucks, to deliver the chill & frozen foods, medicals, fruits, vegetables, ice cube, sea foods, etc.

3. OEM customized service are avaliable.

4. Low operational cost and service cost.

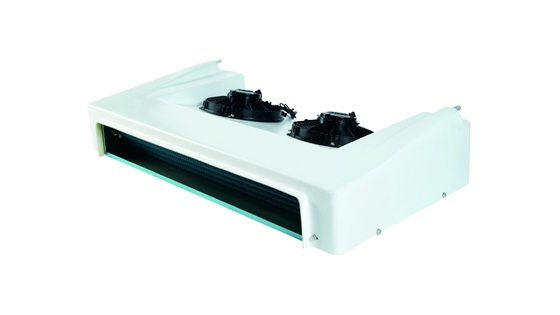

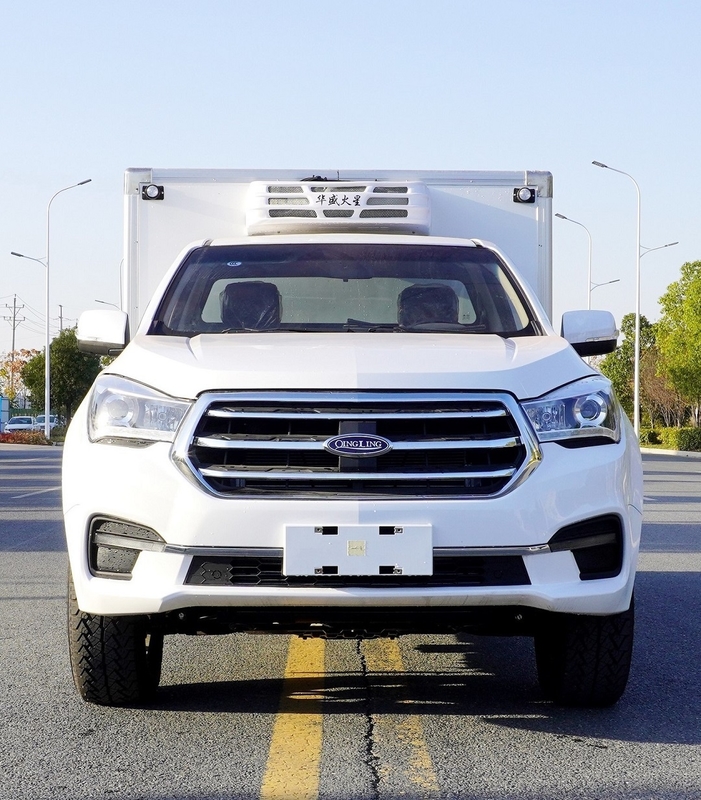

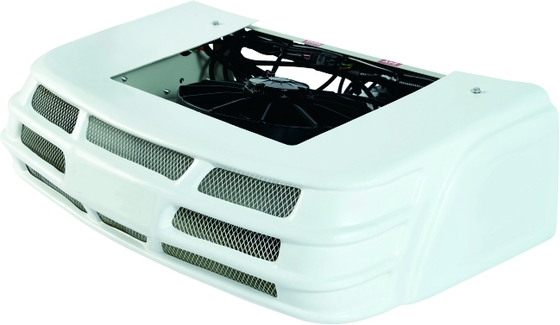

Product Pictures:

Technical Parameters:

Unit Model		HT-200
Applicable Temperature(℃)		-25℃ ~ +25℃
Box Volume (m³)		≤6m³
Cooling Capacity (W)	0℃	2150 W
Cooling Capacity (W)	-18℃	1130 W
Compressor	Model	5H14
	CC	138 CC
	Lubricating Oil	PAG 68
Evaporator	Material	Inner grooved copper tube
Evaporator	Number of Fans	1 PCS
Condenser	Material	Parallel flow condenser
Condenser	Number of Fans	1 PCS
Refrigerant		R404a
Refrigerant Charge		0.8Kg
Box Temperature Adjustment		Electronic digital display
Safety Protect		High and low pressure switch
Defrosting		Hot gas defrost automatically
Weight/Dimensions	Evaporator	13KG
	Condenser	19KG
	Evaporator	780580210
	Condenser	860500250
Drive Model		Non-independent engine driven
