ZJ5-020 5-Point Refrigeration Pipe Connector | Indoor & Outdoor Unit Connection Tube

Name: ZJ5-020 5-Point Refrigeration Pipe Connector | Indoor & Outdoor Unit Connection Tube
Brand: Sichuan Yinhuasheng Technology Co., Ltd.
SKU: ZJ5-020
Availability: InStock

Brand Name:	YINHUASHENG
Model Number:	ZJ5-020
MOQ:	1PCS
Price:	negotiation
Payment Terms:	T/T,L/C
Supply Ability:	1000

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE/ISO

Model:

ZJ5-020

Size:

5-point (DN12 / 5/8" Equivalent)

Connection Type:

OR Hose End + Threaded Component End

Structure:

-shaped (for Indoor/outdoor Unit Connection)

Material:

Zinc-plated Carbon Steel

Compatible Fluids:

R404a Refrigerant

Application:

Connecting Indoor And Outdoor Refrigeration Units

Packaging Details:

wooden cage/ cartoon

Supply Ability:

1000

Highlight:

5-point refrigeration pipe connector

refrigerator connection tube for indoor outdoor units

refrigeration pipe connector with warranty

Product Description

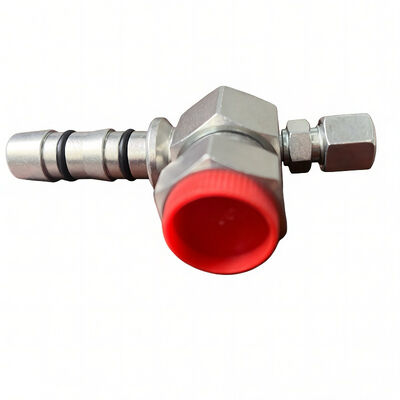

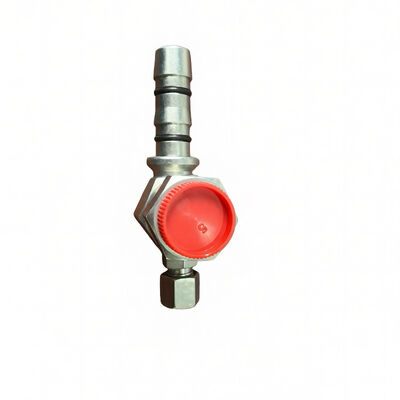

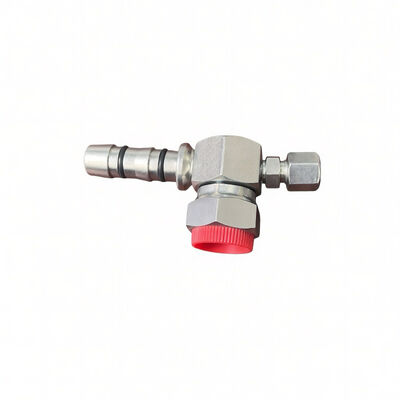

ZJ5-020 5-Point Refrigeration Pipe Connector

Indoor & Outdoor Unit Connection Tube

Product Overview

The ZJ5-020 is a professional 5-point pipe connector engineered to establish a secure, leak-proof connection between indoor and outdoor refrigeration units. It features a robust T-shaped structure with integrated service valve, ensuring stable refrigerant flow and simplified maintenance for cold chain transport, commercial refrigeration, and HVAC systems.

Key Features

5-Point Standard Size: DN12 (5/8") specification, ensuring universal compatibility with most refrigeration unit pipelines
T-Shaped Structure: Optimized for efficient refrigerant distribution between indoor and outdoor units
Built-in Service Valve: Enables convenient refrigerant charging, pressure testing, and system maintenance without disassembly
High-Strength Metal Construction: Made from zinc-plated steel, offering excellent corrosion resistance and durability
Dual O-Ring Sealing: Prevents refrigerant leakage under high-pressure and variable-temperature conditions
Precision Machining: Smooth inner bore minimizes flow resistance and pressure loss, ensuring efficient system operation
Easy Installation: Push-in hose connection and threaded ports reduce installation time and complexity

Technical Specifications

Model	ZJ5-020
Size	5-point (DN12 / 5/8" equivalent)
Connection Type	OR hose end + threaded component end
Structure	T-shaped (for indoor/outdoor unit connection)
Material	Zinc-plated carbon steel
Sealing Method	Dual O-ring (EPDM/NBR)
Service Valve	Integrated for refrigerant charging/testing
Compatible Fluids	R404a refrigerant
Application	Connecting indoor and outdoor refrigeration units

Applications

Cold Chain Transport: Used in refrigerated trucks and container units to link indoor and outdoor refrigeration components
Commercial Refrigeration: Applied in cold storage, display cases, and walk-in freezers
HVAC Systems: Suitable for air conditioning and heat pump refrigerant pipeline connections
Industrial Refrigeration: Ideal for connecting indoor and outdoor units in industrial cooling systems

Product Benefits

Reliable Connection: Ensures stable refrigerant flow between indoor and outdoor units
Leak-Proof Performance: Precision-engineered sealing structure eliminates refrigerant leakage risks
Maintenance Convenience: Built-in service valve simplifies system diagnostics and refrigerant handling
Durable Construction: High-quality materials extend service life and reduce maintenance costs
Universal Compatibility: Fits standard 5-point refrigeration pipelines and unit ports
Easy Installation: Push-in and threaded connections reduce installation time and labor costs
