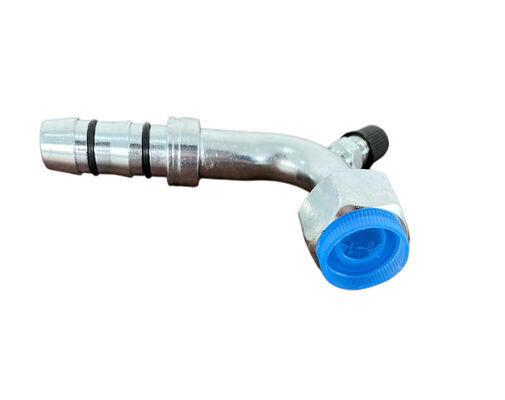

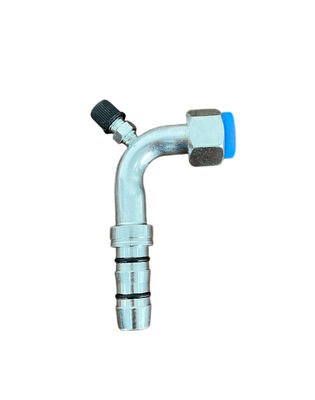

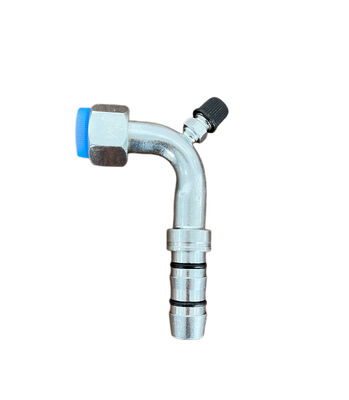

OR 5 to 6 90° Elbow Tube Fitting with Service Valve | Refrigeration Hose & Component Connector
Product Details
| Model: | OR5 To OR6 Reducer 90° Elbow Tube With Service Valve | Size: | OR5 ↔ OR6 (DN12 ↔ DN16 / 5/8" ↔ 3/4" Equivalent) |
|---|---|---|---|
| Connection Type: | OR Hose End + Threaded Component End | Angle: | 90° Bend |
| Material: | Zinc-plated Carbon Steel | Compatible Fluids: | R404a Refrigerants |
| Application: | Connect Hoses To Compressors, Oil Separators, Receivers In Refrigeration Systems | ||
| Highlight |
90° elbow tube fitting with service valve,refrigeration hose connector with elbow,vehicle refrigeration unit tube fitting |
||
Product Description
- Size Transition Design: Converts between OR5 and OR6 hose/pipeline sizes for flexible system layout and component compatibility
- 90° Elbow Structure: Optimized for routing hoses in narrow engine compartments and limited-space refrigeration units, avoiding pipeline bending stress
- Built-in Service Valve: Enables convenient refrigerant charging, pressure testing, and system maintenance without pipeline disconnection
- High-Strength Zinc-Plated Steel: Resists corrosion, vibration, and wear for long-term operation in harsh refrigeration environments
- Dual O-Ring Sealing: Prevents refrigerant leakage under high-pressure and variable-temperature conditions
- Precision Machining: Smooth inner bore minimizes flow resistance and pressure loss for efficient system operation
| Parameter | Details |
|---|---|
| Model | OR5 to OR6 Reducer 90° Elbow Tube with Service Valve |
| Size | OR5 ↔ OR6 (DN12 ↔ DN16 / 5/8" ↔ 3/4" equivalent) |
| Connection Type | OR hose end + threaded component end |
| Angle | 90° bend |
| Material | Zinc-plated carbon steel |
| Sealing Method | Dual O-ring (EPDM/NBR) |
| Service Valve | Integrated for refrigerant charging/testing |
| Compatible Fluids | R404a refrigerants |
| Application | Connect hoses to compressors, oil separators, receivers in refrigeration systems |
- Refrigeration System Connection: Links OR5/OR6 hoses to compressors, oil separators, receivers, and other core components
- Cold Chain Transport: Used in refrigerated trucks, container refrigeration units, and cold chain logistics vehicles
- Commercial Refrigeration: Applied in cold storage, display cases, and industrial refrigeration equipment
- HVAC Systems: Suitable for air conditioning and heat pump refrigerant pipeline connections
- Pipeline Transition: Enables size conversion between OR5 and OR6 refrigeration pipelines
Product Highlights
OR 5 to 6 90° Elbow Tube Fitting with Service Valve Refrigeration Hose & Component Connector Product Overview This OR5 to OR6 reducer 90° elbow tube is a high-performance transition fitting for refrigeration and cold chain systems. It serves as a critical bridge between OR5 and OR6 size hoses...
