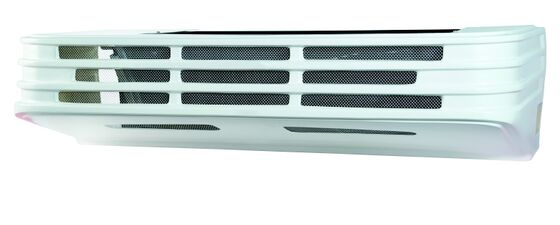

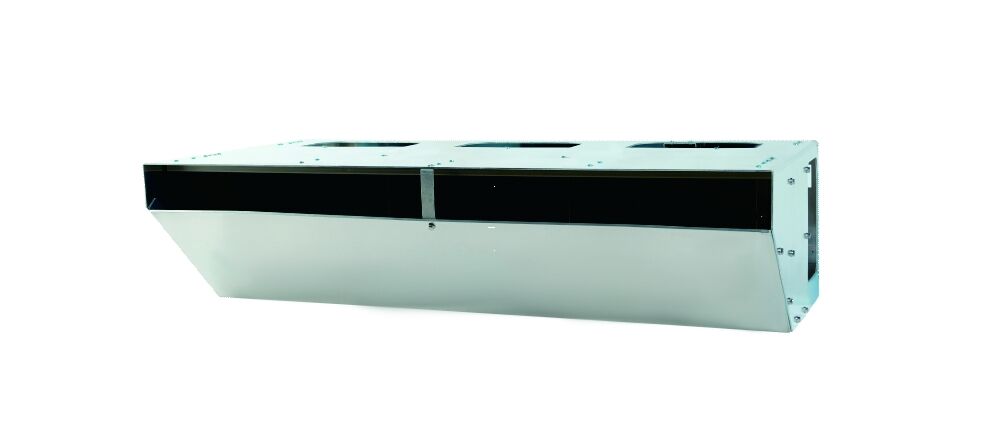

HT-680 Drive Refrigeration Unit for Trucks and Vans
Product Details
| Temperature Range: | -25°C To +25°C | Cooling Capacity(0℃): | 6100W |
|---|---|---|---|
| Cooling Capacity(-18℃): | 3130W | Application Box Volume: | ≤27 M3 |
| Outside Temperature: | 30°C To 50 °C | Compressor Brand: | Guangyu |
| Compressor Mode: | GY17 | Compressor Displacement: | 163 CC |
| Condenser: | Parallel Flow Condenser | Evaporator: | Inner Grooved Copper Tube&aluminum Fin |
| Highlight |
direct drive refrigeration unit for trucks,HT-680 truck refrigeration unit,van refrigeration unit with warranty |
||
Product Description
- Direct drive motor with external rotor design
- Low noise operation ≤55dB(A)
- Comprehensive protection systems (high/low pressure, overload, overheat)
- Electronic digital display for temperature adjustment
- Hot gas automatic defrost system
- CE certified with 1-year warranty
| Unit Model | HT-680 |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤27m³ |
| Cooling Capacity (0℃) | 6100 W |
| Cooling Capacity (-18℃) | 3130 W |
| Compressor Model | GY21 |
| Compressor CC | 209 CC |
| Lubricating Oil | PAG 68 |
| Evaporator Material | Inner grooved copper tube |
| Evaporator Fans | 3 PCS |
| Condenser Material | Parallel flow condenser |
| Condenser Fans | 2 PCS |
| Refrigerant | R404a |
| Refrigerant Charge | 2.7KG |
| Drive Model | Non-independent engine driven |
| Evaporator Weight | 31 KG |
| Condenser Weight | 49 KG |
| Evaporator Dimensions | 1240*610*270 |
| Condenser Dimensions | 1480*500*510 |
Product Highlights
HT680 Direct Drive Refrigeration Unit Truck The HT680 Direct Drive Refrigeration Unit is a highly efficient and reliable refrigeration system designed for use in trucks and vans. It features a direct drive motor and external rotor, providing a low noise level of ≤55dB(A) and operates on 220V/50Hz ...
