products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Electric Refrigeration Unit
Created with Pixso.

EV-200J Electric Refrigeration Unit with 1650W Cooling Capacity for 4-8 m³ Trucks and Parallel Flow Condenser

EV-200J Electric Refrigeration Unit with 1650W Cooling Capacity for 4-8 m³ Trucks and Parallel Flow Condenser

EV-200J Electric Refrigeration Unit with 1650W Cooling Capacity for 4-8 m³ Trucks and Parallel Flow Condenser

Brand Name: Yinhuasheng/OEM
Model Number: EV-200J
MOQ: 1SET
Payment Terms: TT/LC
Supply Ability: 1000 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
EV-200J
Temperature Range:
-25°C To +25°C
Cooling Capacity(0℃):
1650W
Cooling Capacity(-18℃):
960W
Application Box Volume:
4-8 M³
Outside Temperature:
-25°C To 25 °C
Compressor Brand:
Highly
Compressor Mode:
145
Condenser:
Parallel Flow Condenser
Evaporator:
Inner Grooved Copper Tube&aluminum Fin
Supply Ability:
1000 sets per month
Highlight:

EV-200J electric refrigeration system

,

electric truck refrigeration unit

,

diesel truck refrigeration system with warranty

Product Description
EV-200J Electric Refrigeration System
The EV-200J electric refrigeration system is specifically engineered for new full electric and diesel refrigeration trucks. Powered by the vehicle battery, this unit delivers high-performance cooling while maintaining low energy consumption and zero pollutant emissions.
Designed for reefer truck boxes ranging from 4-8m³, this system is ideal for companies seeking sustainable and environmentally friendly refrigeration solutions.
Standard Features
Compatible with small and medium-sized new energy vehicles
High-grade IP67 waterproof and insulation design with AC-DC interlock and four-in-one configuration
Ultra-slim or aluminum alloy evaporator with high air flow capacity
Fully enclosed electric compressor: high efficiency, eco-friendly, unaffected by vehicle speed
Compact design with compressor integrated inside the condenser unit
Multi-functional LCD controller with precise temperature control, full display, and easy operation featuring fault codes and alarms
Non-interference between charging and unit operation, saving charging time and extending battery service life
HP and LP switch safety protection
Standard AC220V standby for parking cooling

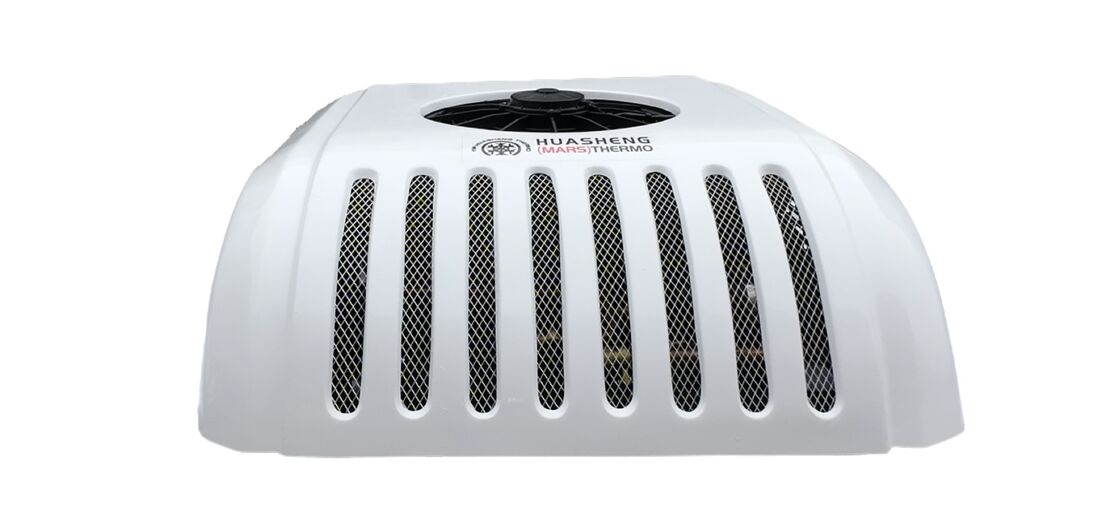

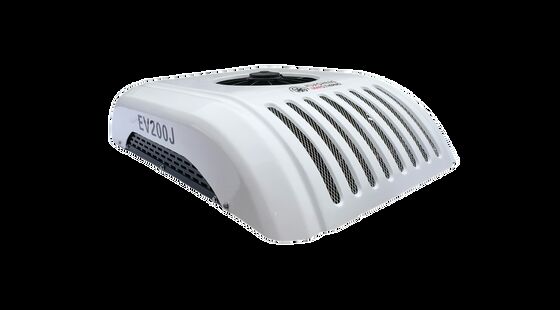

Product Images
EV-200J Electric Refrigeration Unit with 1650W Cooling Capacity for 4-8 m³ Trucks and Parallel Flow Condenser 0 EV-200J Electric Refrigeration Unit with 1650W Cooling Capacity for 4-8 m³ Trucks and Parallel Flow Condenser 1
Technical Parameters
Parameter Specification
Unit Model EV-200J
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤4-8m³
Cooling Capacity at 0℃ 1650 W
Cooling Capacity at -20℃ 960 W
Compressor Model 145
Air Displacement 14.5CC
Evaporator Material Inner grooved copper tube
Evaporative Air Volume 950m³/h
Condenser Material Parallel flow condenser
Number of Fans 1 PCS
Compressor Voltage DC 12/24V
Low Voltage Power DC-DC
Control Voltage DC 12/24V
Refrigerant R404a
Refrigerant Charge 0.95 KG
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Evaporator Weight 13 KG
Condenser Weight 47 KG
Evaporator Dimensions 780×580×210 mm
Condenser Dimensions 890×720×207 mm
Drive Model Full electric driven
Tags:

Electric Refrigeration Unit

Transport truck refrigeration equipment

electric reefer unit for box truck
